Agentic AI – MCP Transports

Agentic AI – MCP Feature Lists

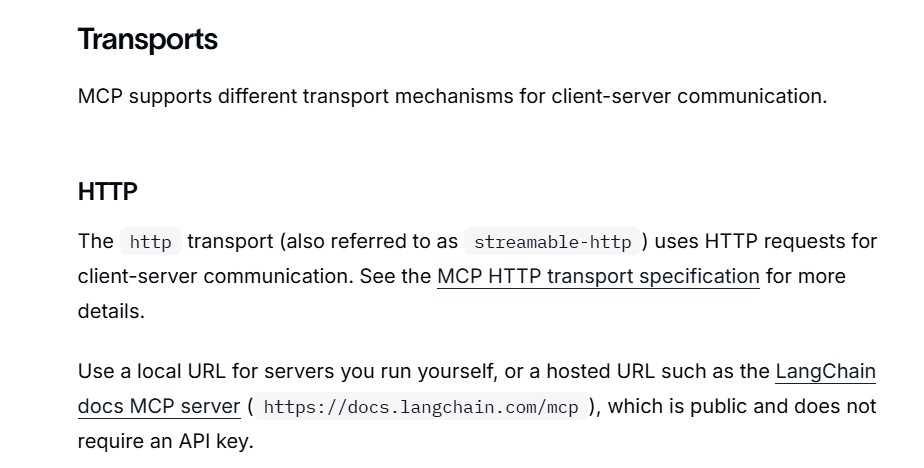

MCP Transports.
MCP HTTP Transport.

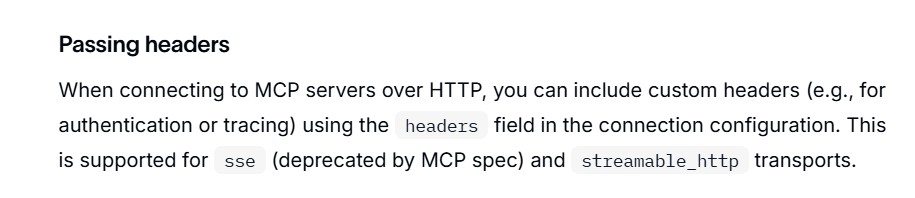

MCP Passing Headers In Transport.

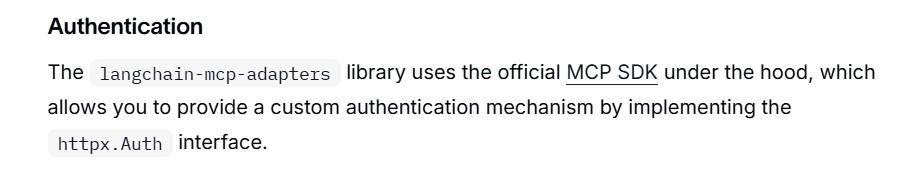

MCP Authentication While Transport.

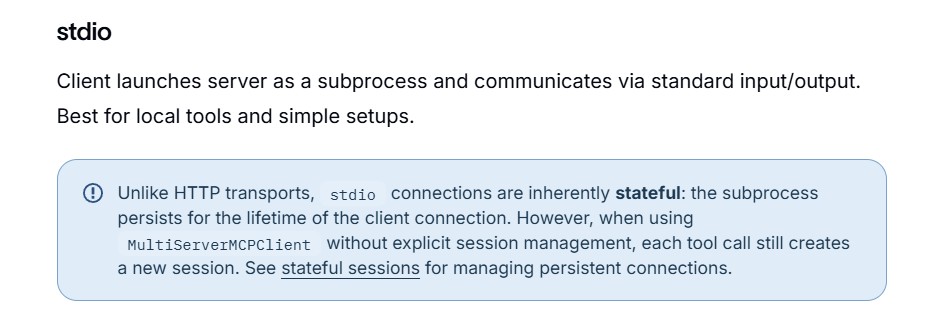

MCP ‘stdio’ Transport.

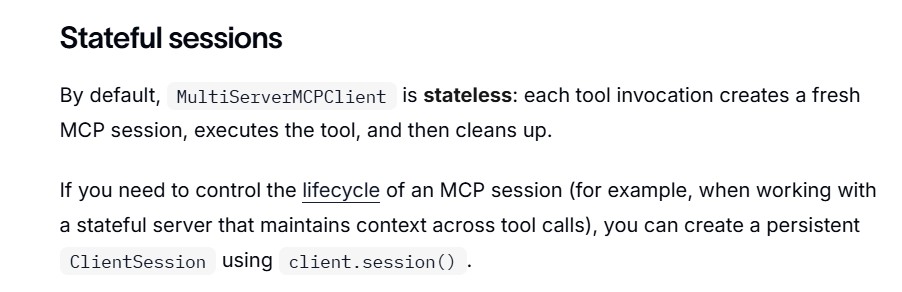

MCP Steteful Sections.
MCP Core Features.

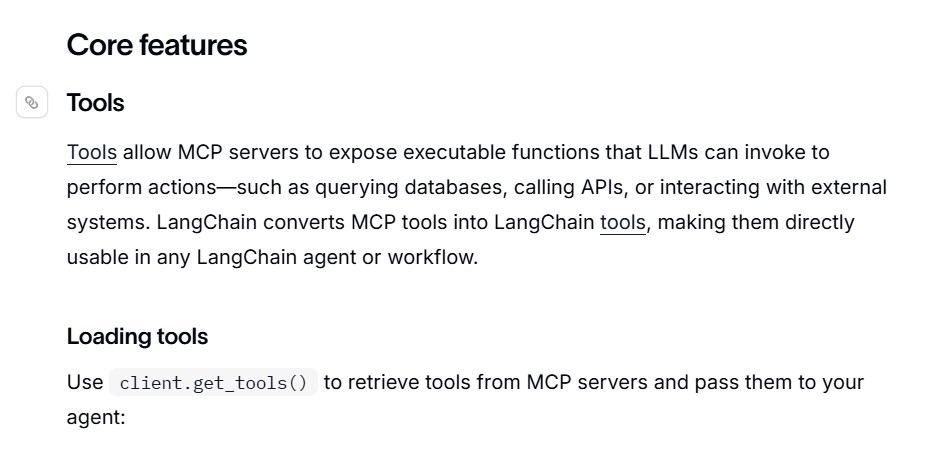

MCP Tools.

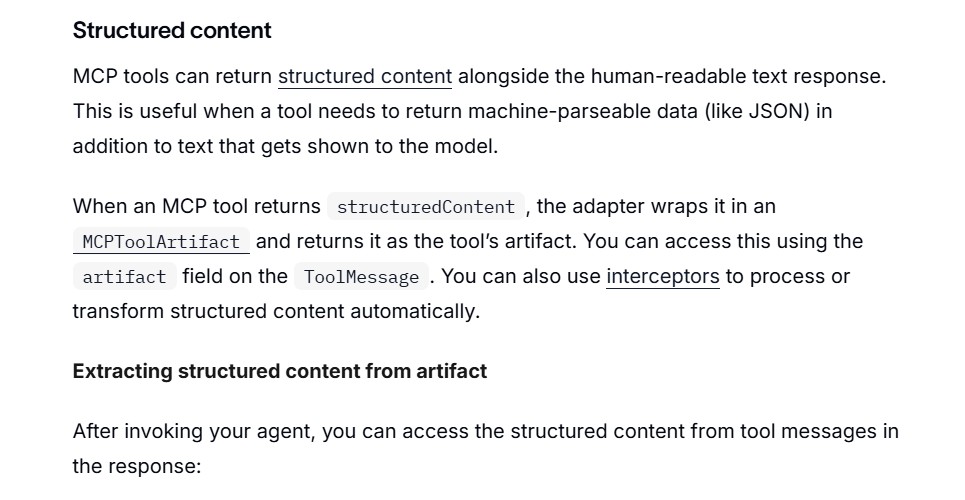

MCP Structured Content.

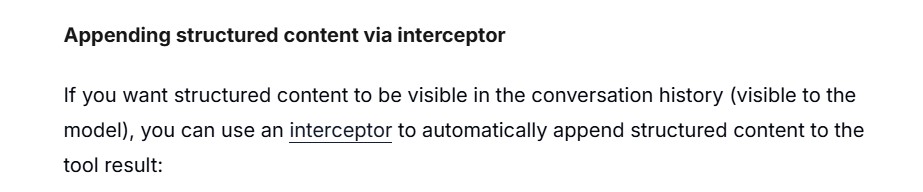

Appending Structures Content Via Interceptor.

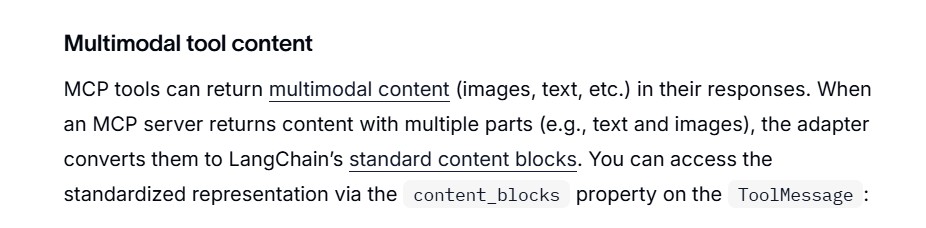

Multimodal Tool Content.

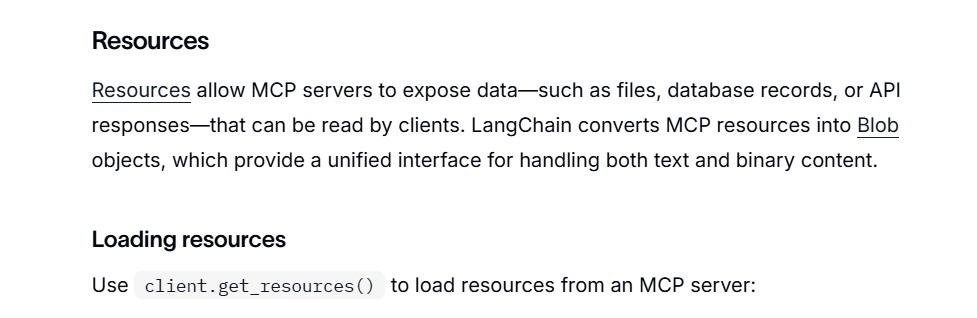

MCP Resources.
MCP Loading Resources.

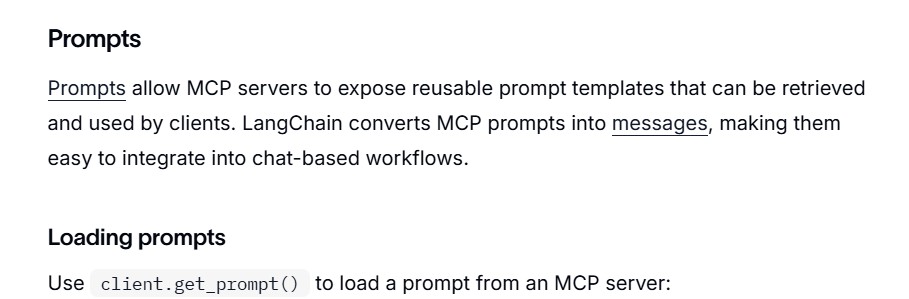

MCP Prompts.
MCP Loading Prompts.

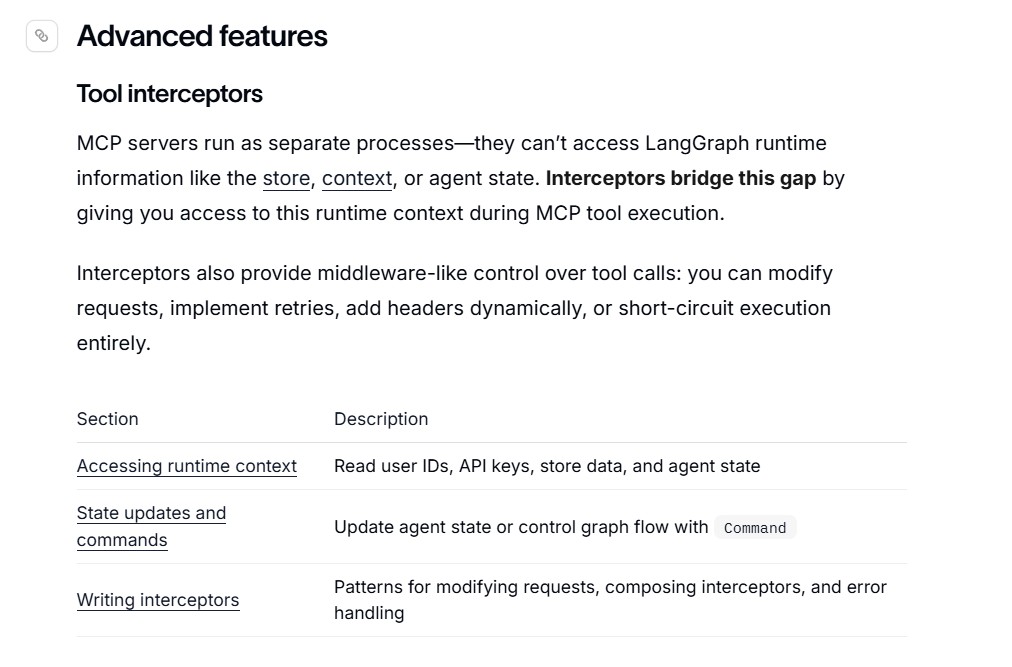

MCP Advanced Features.
MCP Tool Interceptors.

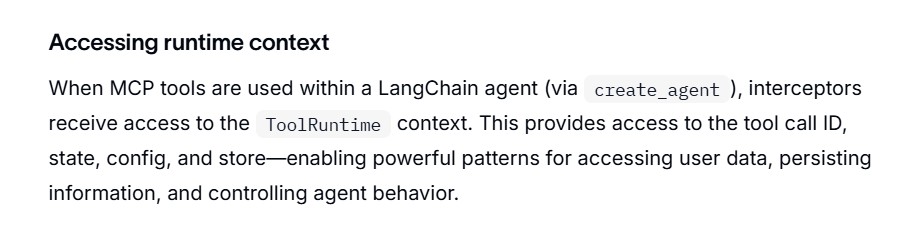

MCP Accessing Runtime Context.

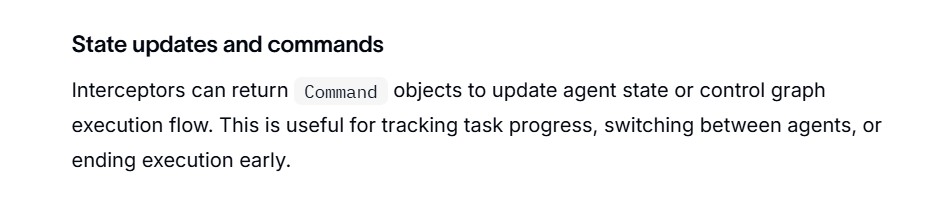

MCP State Update & Commands.
MCP Custom Interceptors.
MCP Custom Interceptors – Basic Pattern.

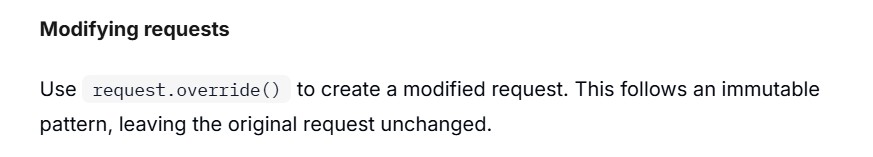

MCP Custom Interceptors – Modifying Requests.

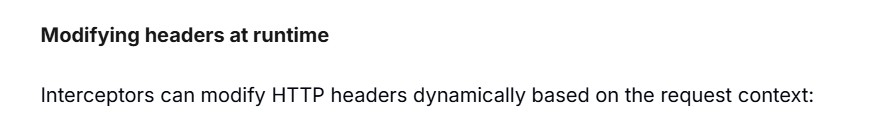

MCP Custom Interceptors – Modifying Headers At Runtime.

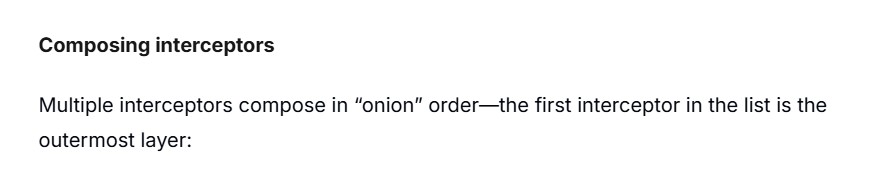

MCP Custom Interceptors – Composing Interceptors.

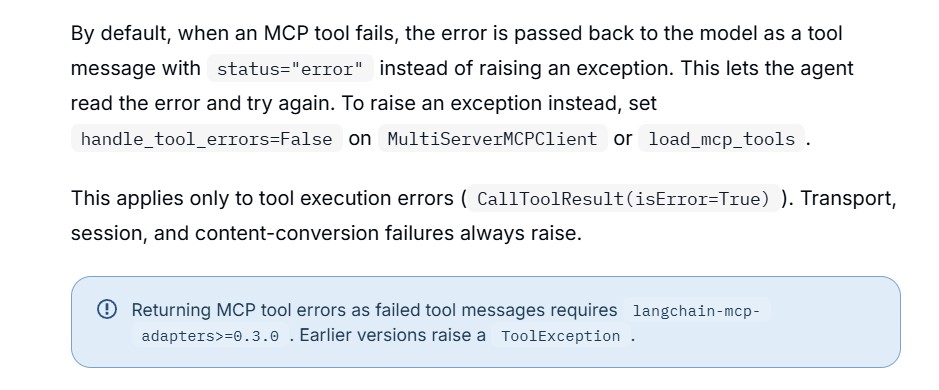

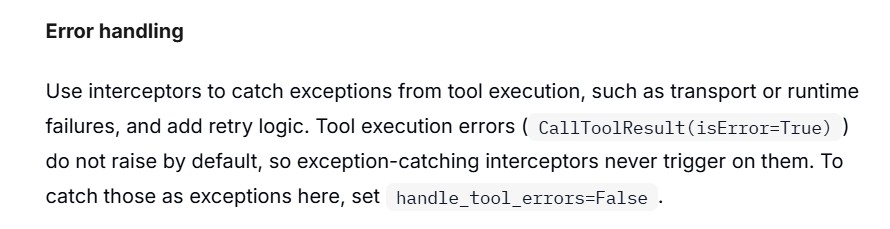

MCP Custom Interceptors – Error Handling.

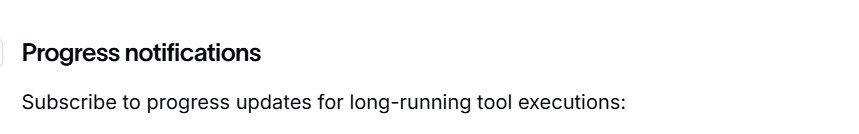

MCP – Progress Notifications.

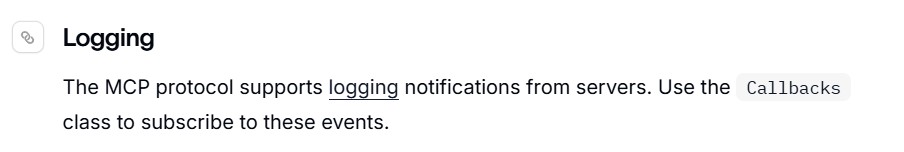

MCP – Logging.

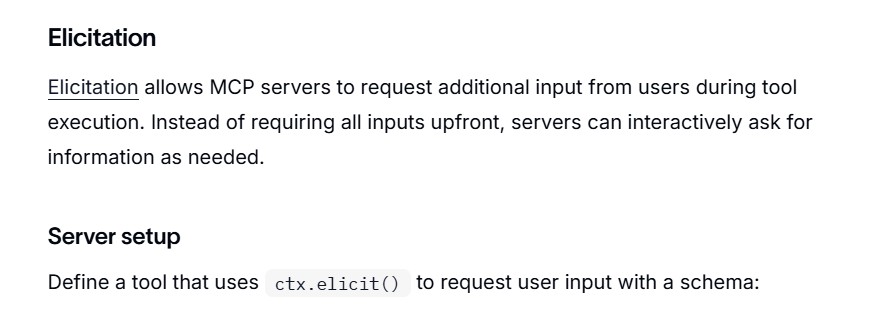

MCP – Elicitation.
MCP – Elicitation – Server Setup.

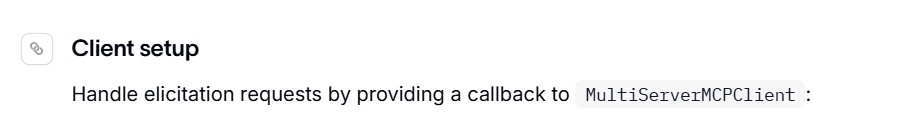

MCP – Elicitation – Client Setup.

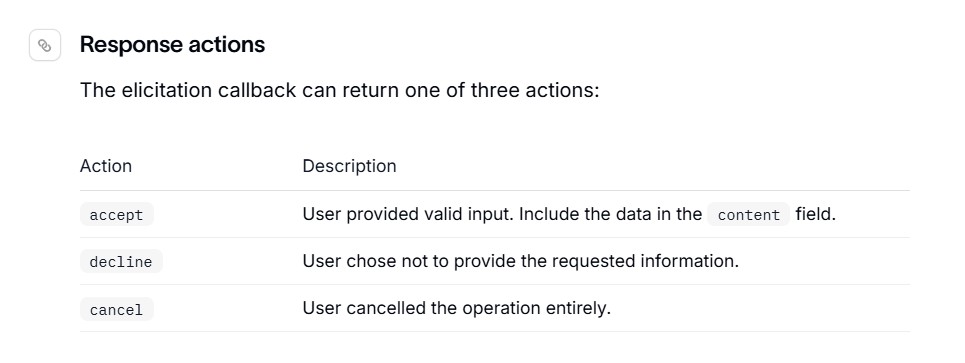

MCP – Elicitation – Response Actions.

from langchain.agents import create_agent
from langchain_mcp_adapters.client import MultiServerMCPClient

client = MultiServerMCPClient(
    {
        "mcp": {
            "transport": "http",
            # "url": "http://localhost:8000/mcp",  # Local server
            "url": "https://docs.langchain.com/mcp",  # Hosted server
        }
    }
)
tools = await client.get_tools()
agent = create_agent("openai:gpt-5.4", tools)
response = await agent.ainvoke(
    {
        "messages": [
            {
                "role": "user",
                "content": "How do I connect LangChain to an MCP server over HTTP?",
            }
        ]
    }
)

from langchain_mcp_adapters.client import MultiServerMCPClient
from langchain.agents import create_agent

client = MultiServerMCPClient(
    {
        "weather": {
            "transport": "http",
            "url": "http://localhost:8000/mcp",
            "headers": {
                "Authorization": "Bearer YOUR_TOKEN",
                "X-Custom-Header": "custom-value"
            },
        }
    }
)
tools = await client.get_tools()
agent = create_agent("openai:gpt-5.5", tools)
response = await agent.ainvoke({"messages": "what is the weather in nyc?"})

from langchain_mcp_adapters.client import MultiServerMCPClient

client = MultiServerMCPClient(
    {
        "weather": {
            "transport": "http",
            "url": "http://localhost:8000/mcp",
            "auth": auth,
        }
    }
)

client = MultiServerMCPClient(
    {
        "math": {
            "transport": "stdio",
            "command": "python",
            "args": ["/path/to/math_server.py"],
        }
    }
)

from langchain_mcp_adapters.client import MultiServerMCPClient
from langchain_mcp_adapters.tools import load_mcp_tools
from langchain.agents import create_agent

client = MultiServerMCPClient({...})

# Create a session explicitly
async with client.session("server_name") as session:
    # Pass the session to load tools, resources, or prompts
    tools = await load_mcp_tools(session)
    agent = create_agent(
        "google_genai:gemini-3.6-flash",
        tools
    )

from langchain_mcp_adapters.client import MultiServerMCPClient
from langchain.agents import create_agent

client = MultiServerMCPClient({...})
tools = await client.get_tools()
agent = create_agent("claude-sonnet-4-6", tools)

from langchain_mcp_adapters.client import MultiServerMCPClient
from langchain.agents import create_agent
from langchain.messages import ToolMessage

client = MultiServerMCPClient({...})
tools = await client.get_tools()
agent = create_agent("claude-sonnet-4-6", tools)

result = await agent.ainvoke(
    {"messages": [{"role": "user", "content": "Get data from the server"}]}
)

# Extract structured content from tool messages
for message in result["messages"]:
    if isinstance(message, ToolMessage) and message.artifact:
        structured_content = message.artifact["structured_content"]

import json

from langchain_mcp_adapters.client import MultiServerMCPClient
from langchain_mcp_adapters.interceptors import MCPToolCallRequest
from mcp.types import TextContent

async def append_structured_content(request: MCPToolCallRequest, handler):
    """Append structured content from artifact to tool message."""
    result = await handler(request)
    if result.structuredContent:
        result.content += [
            TextContent(type="text", text=json.dumps(result.structuredContent)),
        ]
    return result

client = MultiServerMCPClient({...}, tool_interceptors=[append_structured_content])

from langchain.agents import create_agent
from langchain_mcp_adapters.client import MultiServerMCPClient

async def access_multimodal_tool_content():
    client = MultiServerMCPClient({})
    tools = await client.get_tools()
    agent = create_agent("claude-sonnet-4-6", tools)

    result = await agent.ainvoke(
        {"messages": [{"role": "user", "content": "Take a screenshot of the current page"}]}
    )

    # Access multimodal content from tool messages
    for message in result["messages"]:
        if message.type == "tool":
            # Raw content in provider-native format
            print(f"Raw content: {message.content}")

            # Standardized content blocks
            for block in message.content_blocks:
                if block["type"] == "text":
                    print(f"Text: {block['text']}")
                elif block["type"] == "image":
                    print(f"Image URL: {block.get('url')}")
                    print(f"Image base64: {block.get('base64', '')[:50]}...")

from langchain_mcp_adapters.client import MultiServerMCPClient

client = MultiServerMCPClient({...})

# Load all resources from a server
blobs = await client.get_resources("server_name")

# Or load specific resources by URI
blobs = await client.get_resources("server_name", uris=["file:///path/to/file.txt"])

for blob in blobs:
    print(f"URI: {blob.metadata['uri']}, MIME type: {blob.mimetype}")
    print(blob.as_string())  # For text content

from langchain_mcp_adapters.client import MultiServerMCPClient
from langchain_mcp_adapters.resources import load_mcp_resources

client = MultiServerMCPClient({...})

async with client.session("server_name") as session:
    # Load all resources
    blobs = await load_mcp_resources(session)

    # Or load specific resources by URI
    blobs = await load_mcp_resources(session, uris=["file:///path/to/file.txt"])

from langchain_mcp_adapters.client import MultiServerMCPClient

client = MultiServerMCPClient({...})

# Load a prompt by name
messages = await client.get_prompt("server_name", "summarize")

# Load a prompt with arguments
messages = await client.get_prompt(
    "server_name",
    "code_review",
    arguments={"language": "python", "focus": "security"}
)

# Use the messages in your workflow
for message in messages:
    print(f"{message.type}: {message.content}")

from langchain_mcp_adapters.client import MultiServerMCPClient
from langchain_mcp_adapters.prompts import load_mcp_prompt

client = MultiServerMCPClient({...})

async with client.session("server_name") as session:
    # Load a prompt by name
    messages = await load_mcp_prompt(session, "summarize")

    # Load a prompt with arguments
    messages = await load_mcp_prompt(
        session,
        "code_review",
        arguments={"language": "python", "focus": "security"}
    )

from dataclasses import dataclass
from langchain_mcp_adapters.client import MultiServerMCPClient
from langchain_mcp_adapters.interceptors import MCPToolCallRequest
from langchain.agents import create_agent

@dataclass
class Context:
    user_id: str
    api_key: str

async def inject_user_context(
    request: MCPToolCallRequest,
    handler,
):
    """Inject user credentials into MCP tool calls."""
    runtime = request.runtime
    user_id = runtime.context.user_id
    api_key = runtime.context.api_key

    # Add user context to tool arguments
    modified_request = request.override(
        args={**request.args, "user_id": user_id}
    )
    return await handler(modified_request)

client = MultiServerMCPClient(
    {...},
    tool_interceptors=[inject_user_context],
)
tools = await client.get_tools()
agent = create_agent("gpt-5.5", tools, context_schema=Context)

# Invoke with user context
result = await agent.ainvoke(
    {"messages": [{"role": "user", "content": "Search my orders"}]},
    context={"user_id": "user_123", "api_key": "sk-..."}
)

from langchain.agents import AgentState, create_agent
from langchain_mcp_adapters.interceptors import MCPToolCallRequest
from langchain.messages import ToolMessage
from langgraph.types import Command

async def handle_task_completion(
    request: MCPToolCallRequest,
    handler,
):
    """Mark task complete and hand off to summary agent."""
    result = await handler(request)

    if request.name == "submit_order":
        return Command(
            update={
                "messages": [result] if isinstance(result, ToolMessage) else [],
                "task_status": "completed",
            },
            goto="summary_agent",
        )

    return result

async def end_on_success(
    request: MCPToolCallRequest,
    handler,
):
    """End agent run when task is marked complete."""
    result = await handler(request)

    if request.name == "mark_complete":
        return Command(
            update={"messages": [result], "status": "done"},
            goto="__end__",
        )

    return result

from langchain_mcp_adapters.client import MultiServerMCPClient
from langchain_mcp_adapters.interceptors import MCPToolCallRequest

async def logging_interceptor(
    request: MCPToolCallRequest,
    handler,
):
    """Log tool calls before and after execution."""
    print(f"Calling tool: {request.name} with args: {request.args}")
    result = await handler(request)
    print(f"Tool {request.name} returned: {result}")
    return result

client = MultiServerMCPClient(
    {"math": {"transport": "stdio", "command": "python", "args": ["/path/to/server.py"]}},
    tool_interceptors=[logging_interceptor],
)

async def double_args_interceptor(
    request: MCPToolCallRequest,
    handler,
):
    """Double all numeric arguments before execution."""
    modified_args = {k: v * 2 for k, v in request.args.items()}
    modified_request = request.override(args=modified_args)
    return await handler(modified_request)

# Original call: add(a=2, b=3) becomes add(a=4, b=6)

async def auth_header_interceptor(
    request: MCPToolCallRequest,
    handler,
):
    """Add authentication headers based on the tool being called."""
    token = get_token_for_tool(request.name)
    modified_request = request.override(
        headers={"Authorization": f"Bearer {token}"}
    )
    return await handler(modified_request)

async def outer_interceptor(request, handler):
    print("outer: before")
    result = await handler(request)
    print("outer: after")
    return result

async def inner_interceptor(request, handler):
    print("inner: before")
    result = await handler(request)
    print("inner: after")
    return result

client = MultiServerMCPClient(
    {...},
    tool_interceptors=[outer_interceptor, inner_interceptor],
)

# Execution order:
# outer: before -> inner: before -> tool execution -> inner: after -> outer: after

import asyncio

async def retry_interceptor(
    request: MCPToolCallRequest,
    handler,
    max_retries: int = 3,
    delay: float = 1.0,
):
    """Retry failed tool calls with exponential backoff."""
    last_error = None
    for attempt in range(max_retries):
        try:
            return await handler(request)
        except Exception as e:
            last_error = e
            if attempt < max_retries - 1:
                wait_time = delay * (2 ** attempt)  # Exponential backoff
                print(f"Tool {request.name} failed (attempt {attempt + 1}), retrying in {wait_time}s...")
                await asyncio.sleep(wait_time)
    raise last_error

client = MultiServerMCPClient(
    {...},
    tool_interceptors=[retry_interceptor],
)

async def fallback_interceptor(
    request: MCPToolCallRequest,
    handler,
):
    """Return a fallback value if tool execution fails."""
    try:
        return await handler(request)
    except TimeoutError:
        return f"Tool {request.name} timed out. Please try again later."
    except ConnectionError:
        return f"Could not connect to {request.name} service. Using cached data."

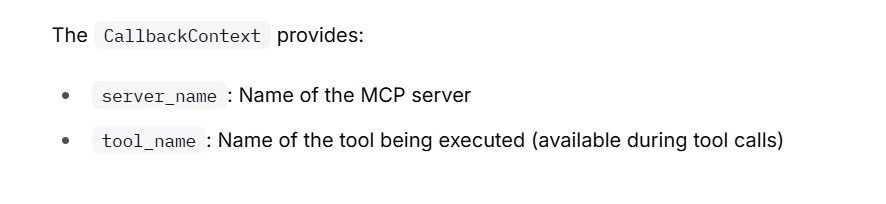

from langchain_mcp_adapters.client import MultiServerMCPClient
from langchain_mcp_adapters.callbacks import Callbacks, CallbackContext

async def on_progress(
    progress: float,
    total: float | None,
    message: str | None,
    context: CallbackContext,
):
    """Handle progress updates from MCP servers."""
    percent = (progress / total * 100) if total else progress
    tool_info = f" ({context.tool_name})" if context.tool_name else ""
    print(f"[{context.server_name}{tool_info}] Progress: {percent:.1f}% - {message}")

client = MultiServerMCPClient(
    {...},
    callbacks=Callbacks(on_progress=on_progress),
)

from langchain_mcp_adapters.client import MultiServerMCPClient
from langchain_mcp_adapters.callbacks import Callbacks, CallbackContext
from mcp.types import LoggingMessageNotificationParams

async def on_logging_message(
    params: LoggingMessageNotificationParams,
    context: CallbackContext,
):
    """Handle log messages from MCP servers."""
    print(f"[{context.server_name}] {params.level}: {params.data}")

client = MultiServerMCPClient(
    {...},
    callbacks=Callbacks(on_logging_message=on_logging_message),
)

from pydantic import BaseModel
from mcp.server.fastmcp import Context, FastMCP

server = FastMCP("Profile")

class UserDetails(BaseModel):
    email: str
    age: int

@server.tool()
async def create_profile(name: str, ctx: Context) -> str:
    """Create a user profile, requesting details via elicitation."""
    result = await ctx.elicit(
        message=f"Please provide details for {name}'s profile:",
        schema=UserDetails,
    )
    if result.action == "accept" and result.data:
        return f"Created profile for {name}: email={result.data.email}, age={result.data.age}"
    if result.action == "decline":
        return f"User declined. Created minimal profile for {name}."
    return "Profile creation cancelled."

if __name__ == "__main__":
    server.run(transport="http")

from langchain_mcp_adapters.client import MultiServerMCPClient
from langchain_mcp_adapters.callbacks import Callbacks, CallbackContext
from mcp.shared.context import RequestContext
from mcp.types import ElicitRequestParams, ElicitResult

async def on_elicitation(
    mcp_context: RequestContext,
    params: ElicitRequestParams,
    context: CallbackContext,
) -> ElicitResult:
    """Handle elicitation requests from MCP servers."""
    # In a real application, you would prompt the user for input
    # based on params.message and params.requestedSchema
    return ElicitResult(
        action="accept",
        content={"email": "[email protected]", "age": 25},
    )

client = MultiServerMCPClient(
    {
        "profile": {
            "url": "http://localhost:8000/mcp",
            "transport": "http",
        }
    },
    callbacks=Callbacks(on_elicitation=on_elicitation),
)

# Accept with data
ElicitResult(action="accept", content={"email": "[email protected]", "age": 25})

# Decline (user doesn't want to provide info)
ElicitResult(action="decline")

# Cancel (abort the operation)
ElicitResult(action="cancel")

Praudyog

Agentic AI – MCP Transports

Agentic AI – MCP Feature Lists

Table Of Contents:

Leave a Reply Cancel reply
