AgenticAI – Short Term Memory

admin

Agentic AI – Short Term Memory

Table Of Contents:

  1. What Is Short Term Memory?
  2. In Memory Saving(Short Term).
  3. Data Base Saving(Long Term).
  4. Create Custom Agent State.
  5. How Do We Khow Whether Short Term Memory Is Enabled In LangGraph?
  6. Problem With Short Term Memory Enabled.
  7. How LangChain Solves The Context Window Exceed Issue?
  8. Message Trimming From Memory.
  9. Message Deletion From Memory.
  10. Summarize The Old Message.
  11. Accessing Short Term Memory.

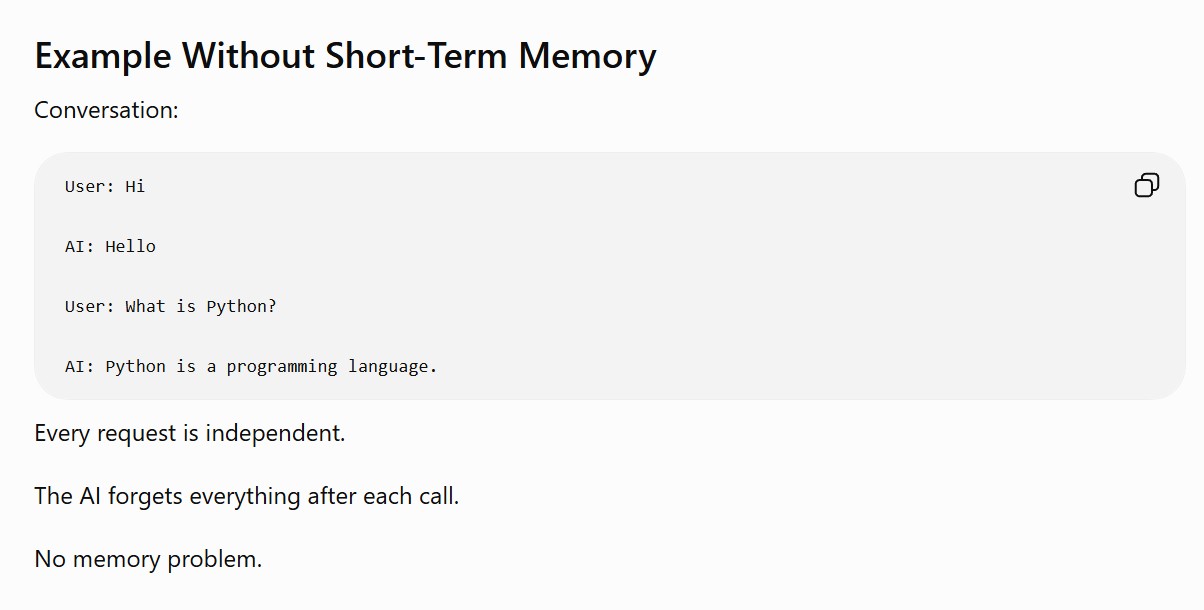

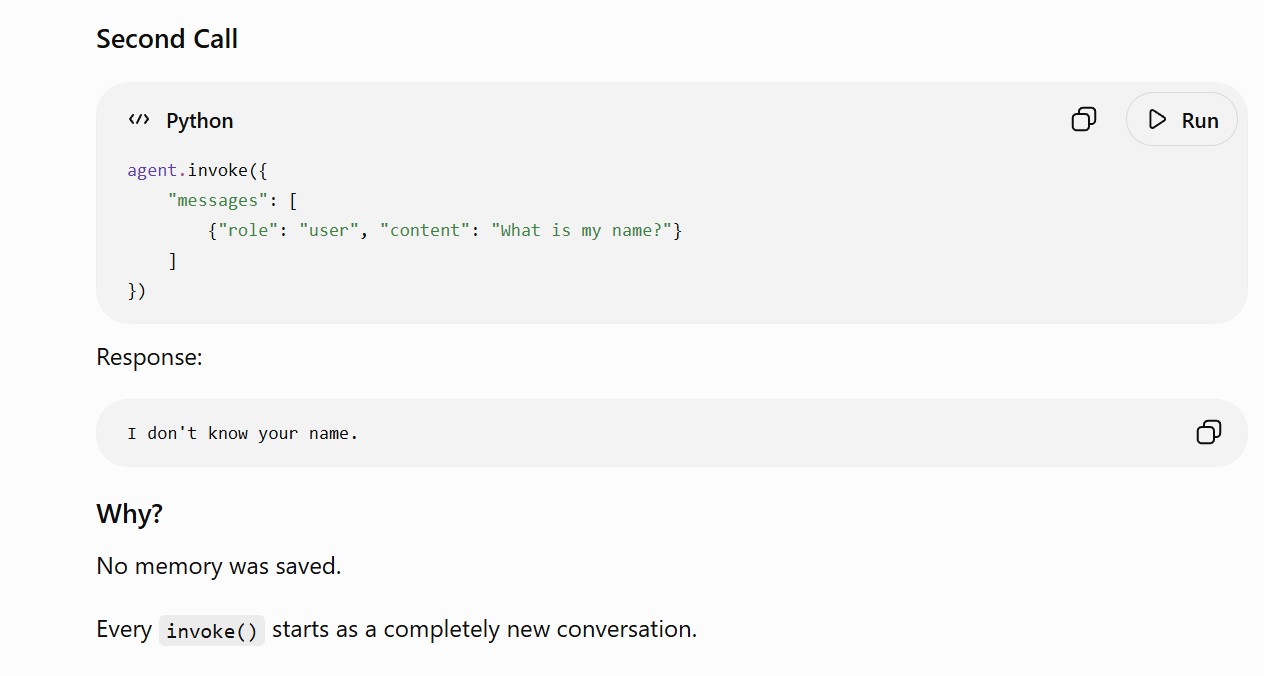

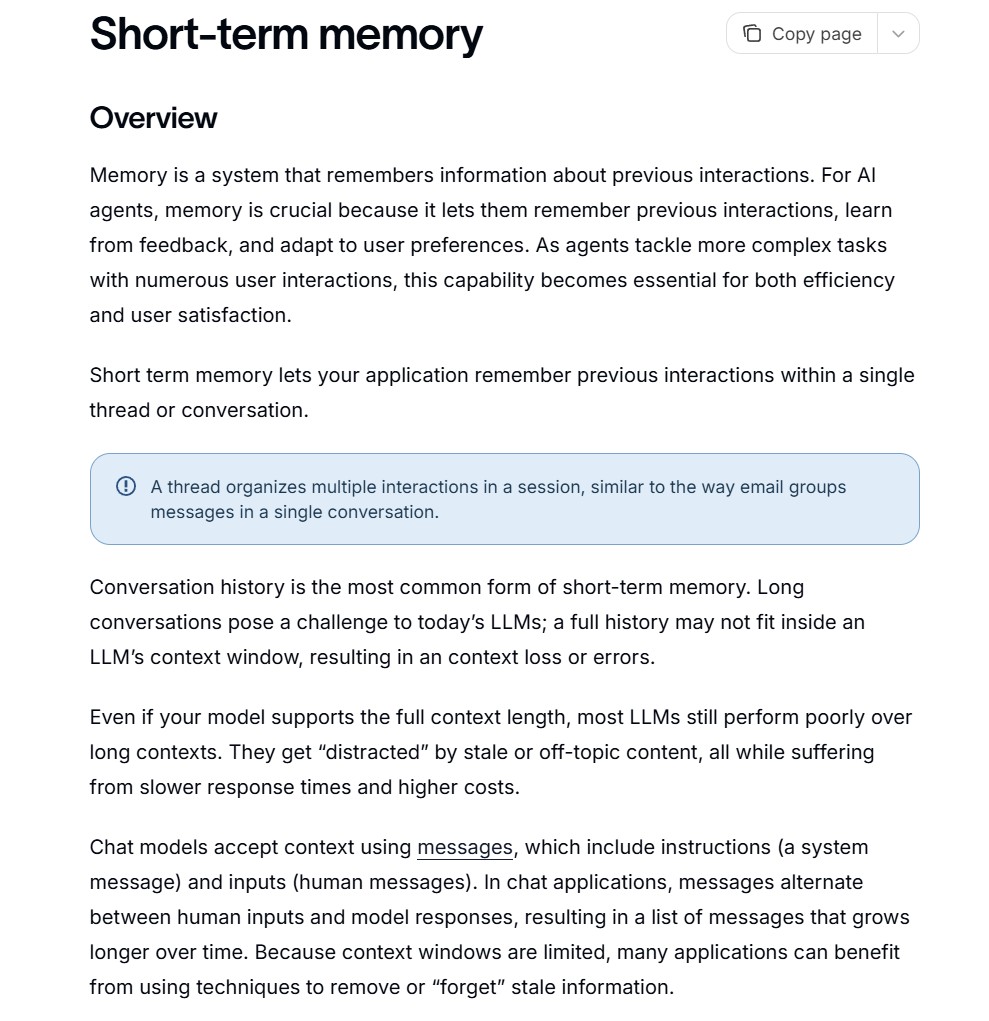

(1) What Is Short Term Memory ?

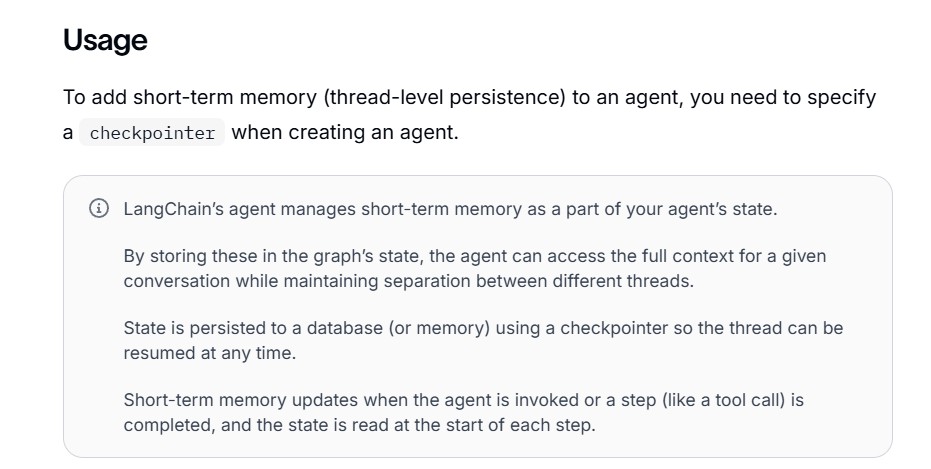

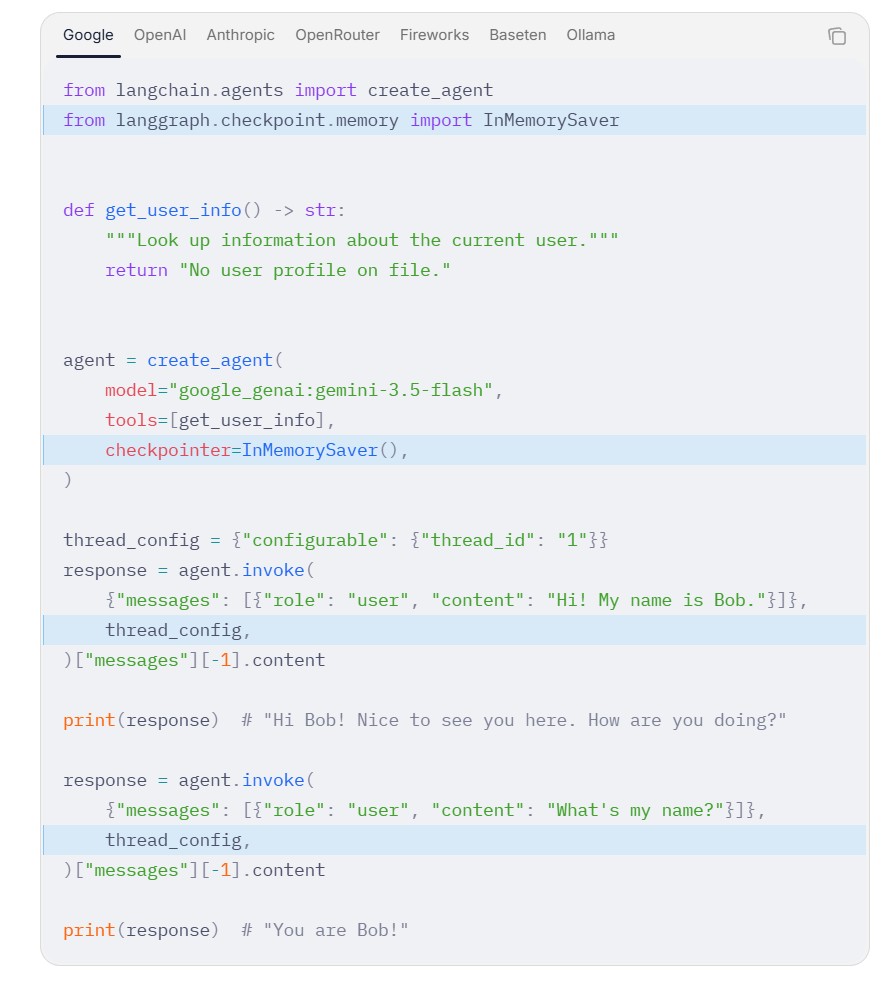

(2) In Memory Saving(Short Term)

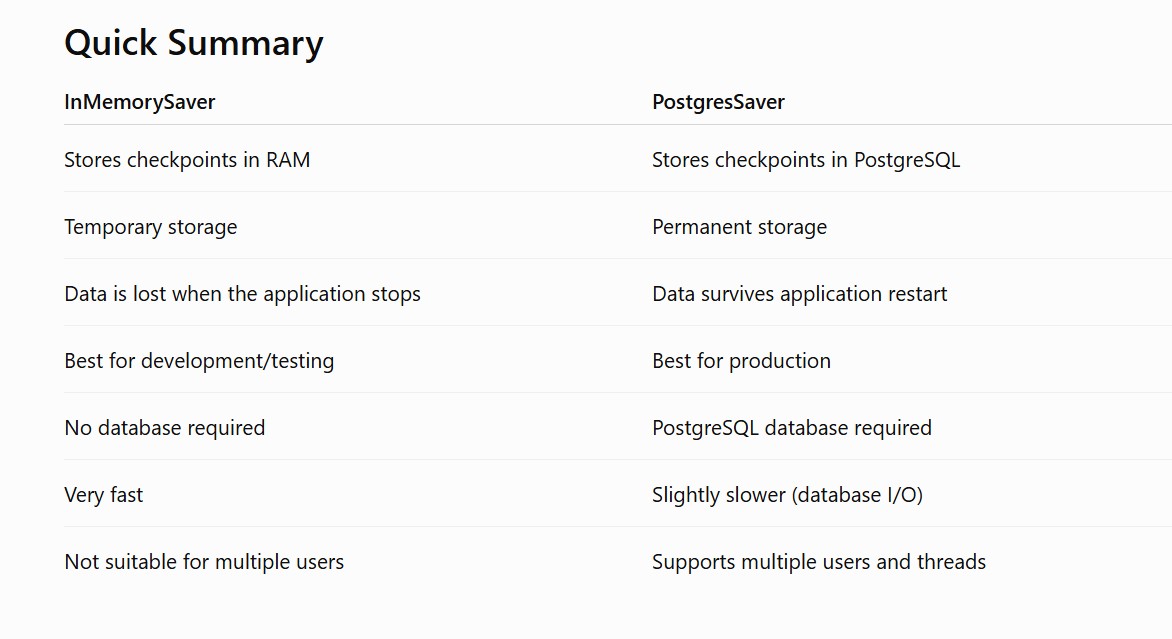

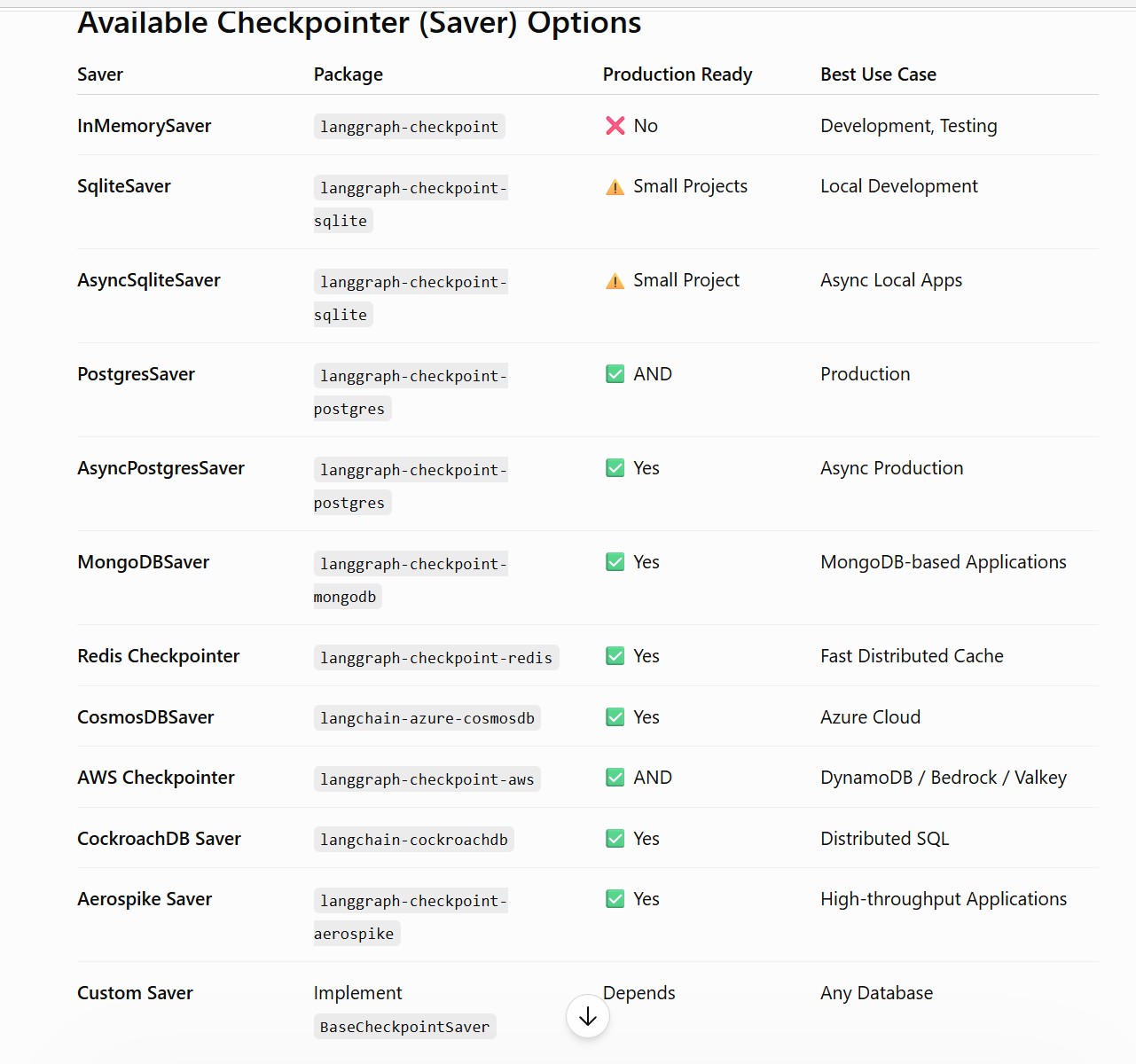

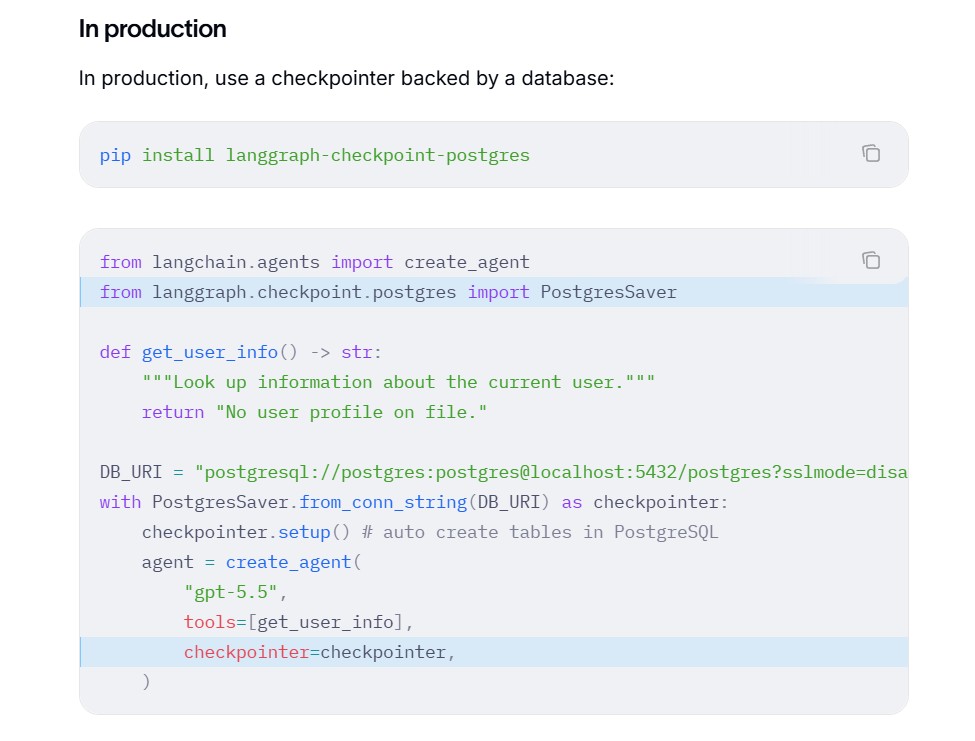

(3) Data Base Saving(Long Term)

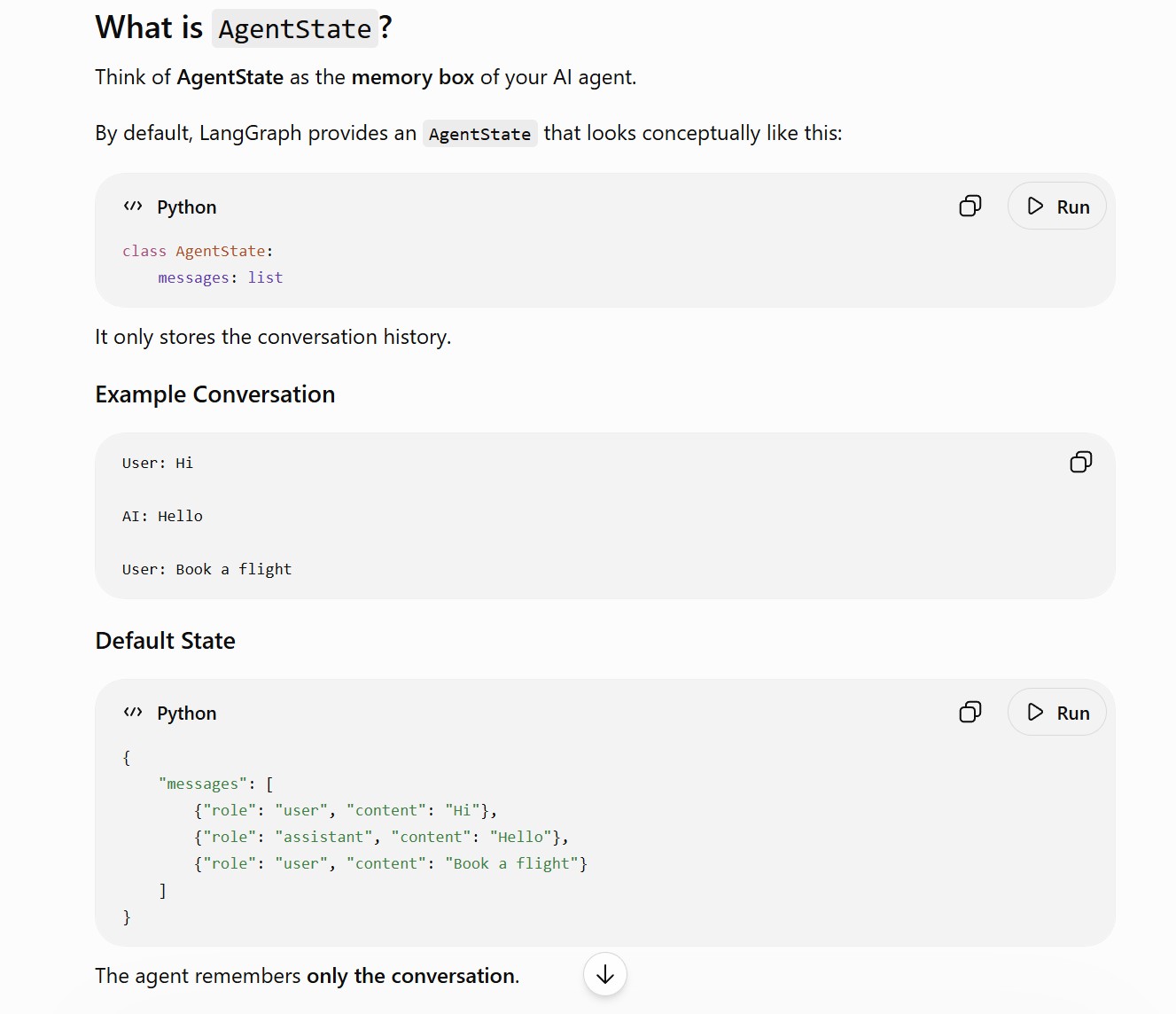

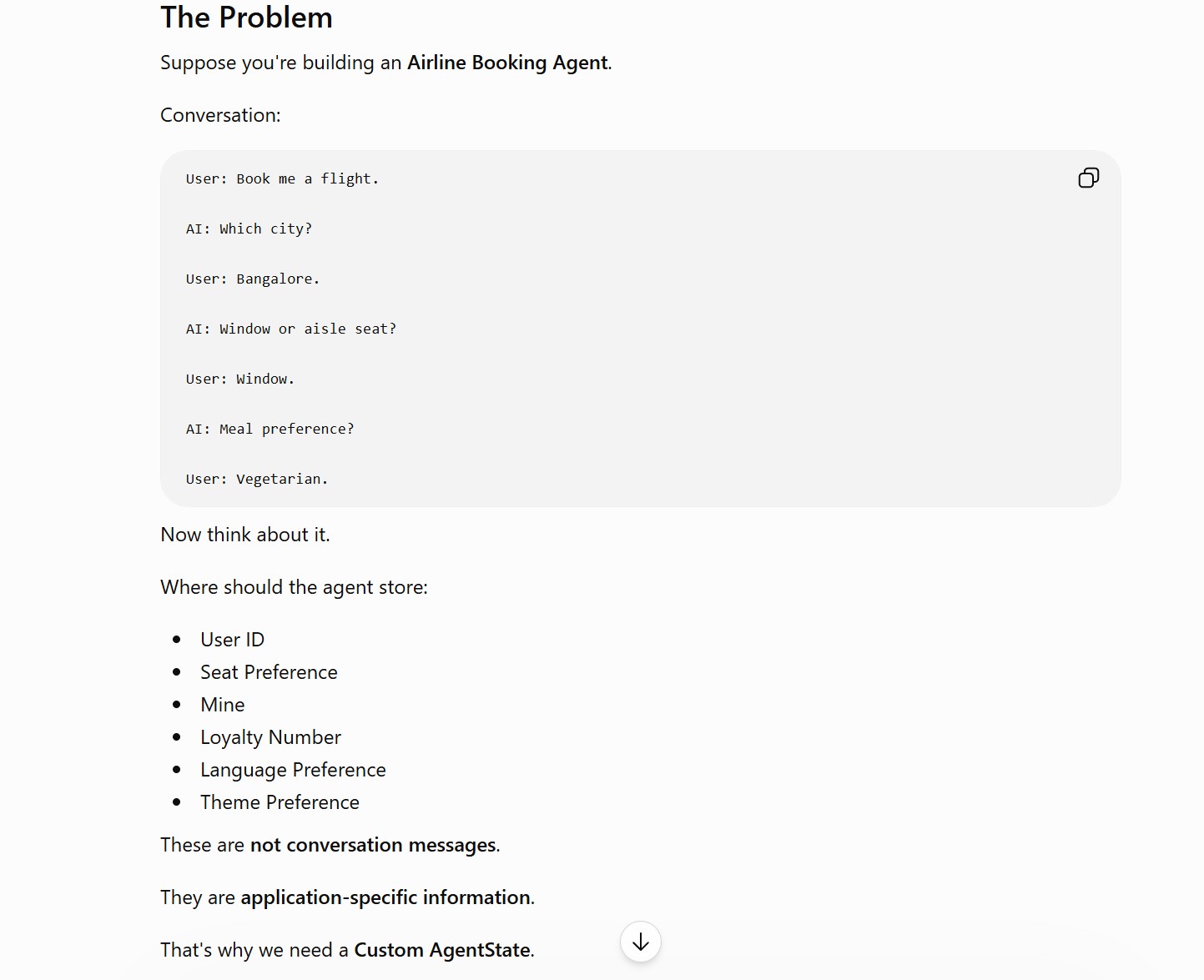

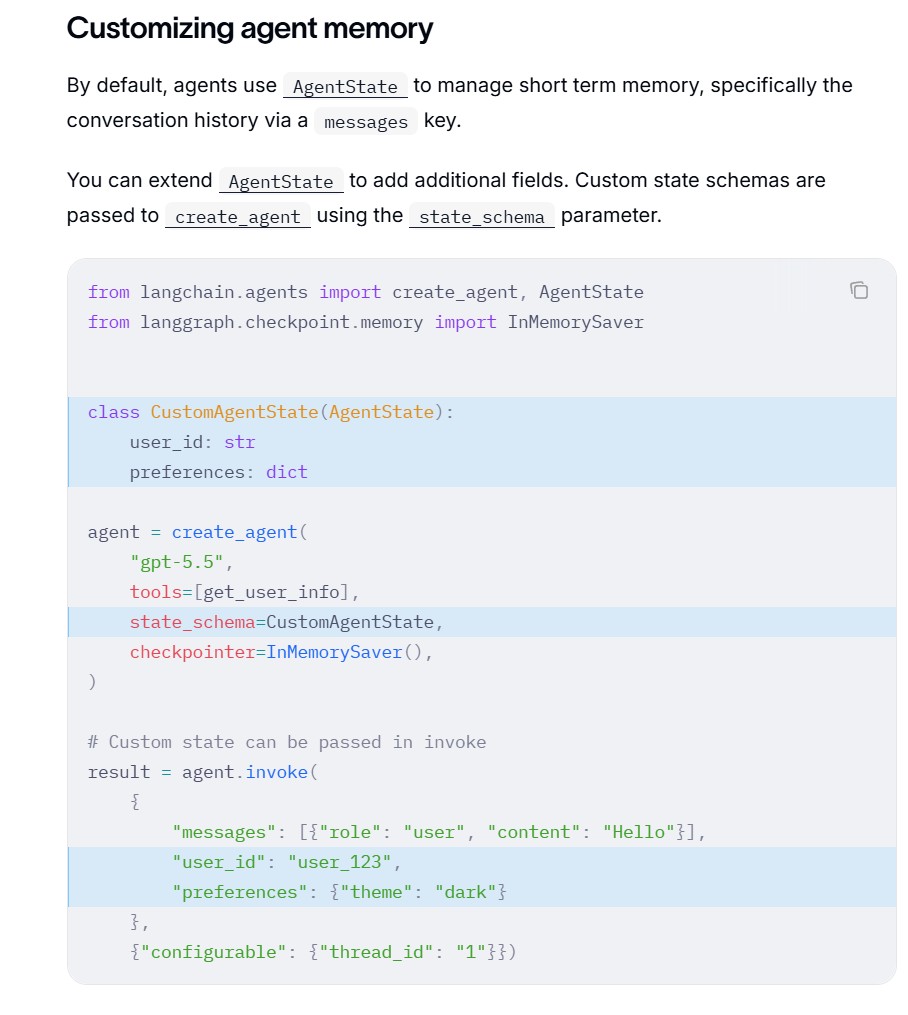

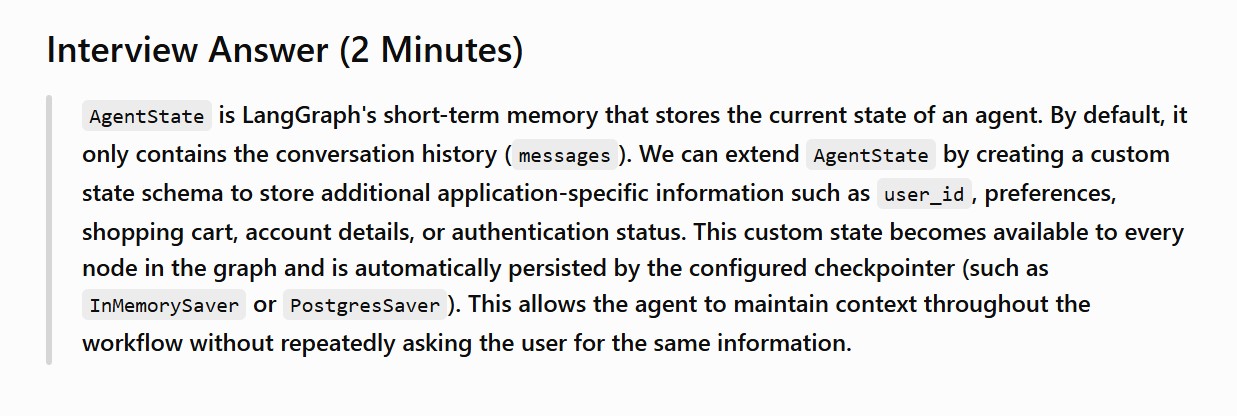

(5) Create Custom Agent State

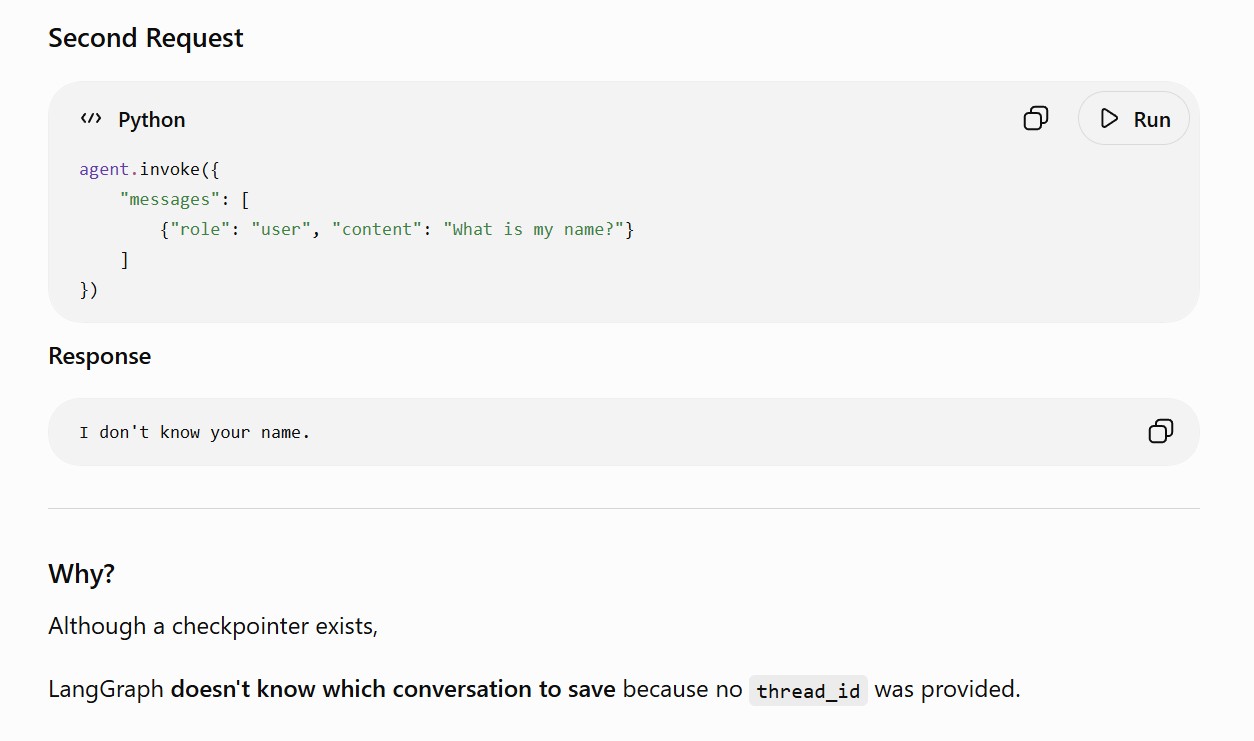

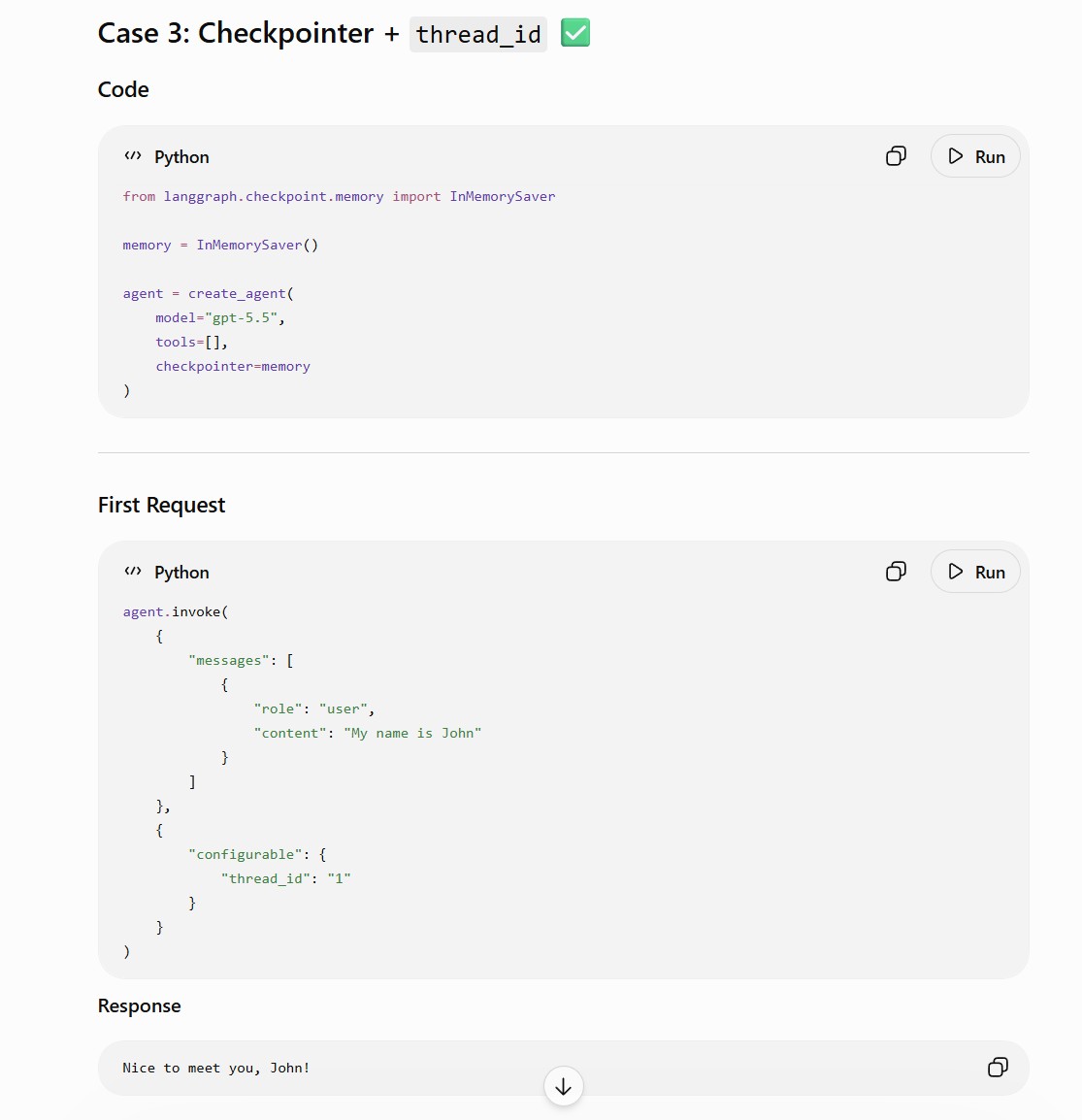

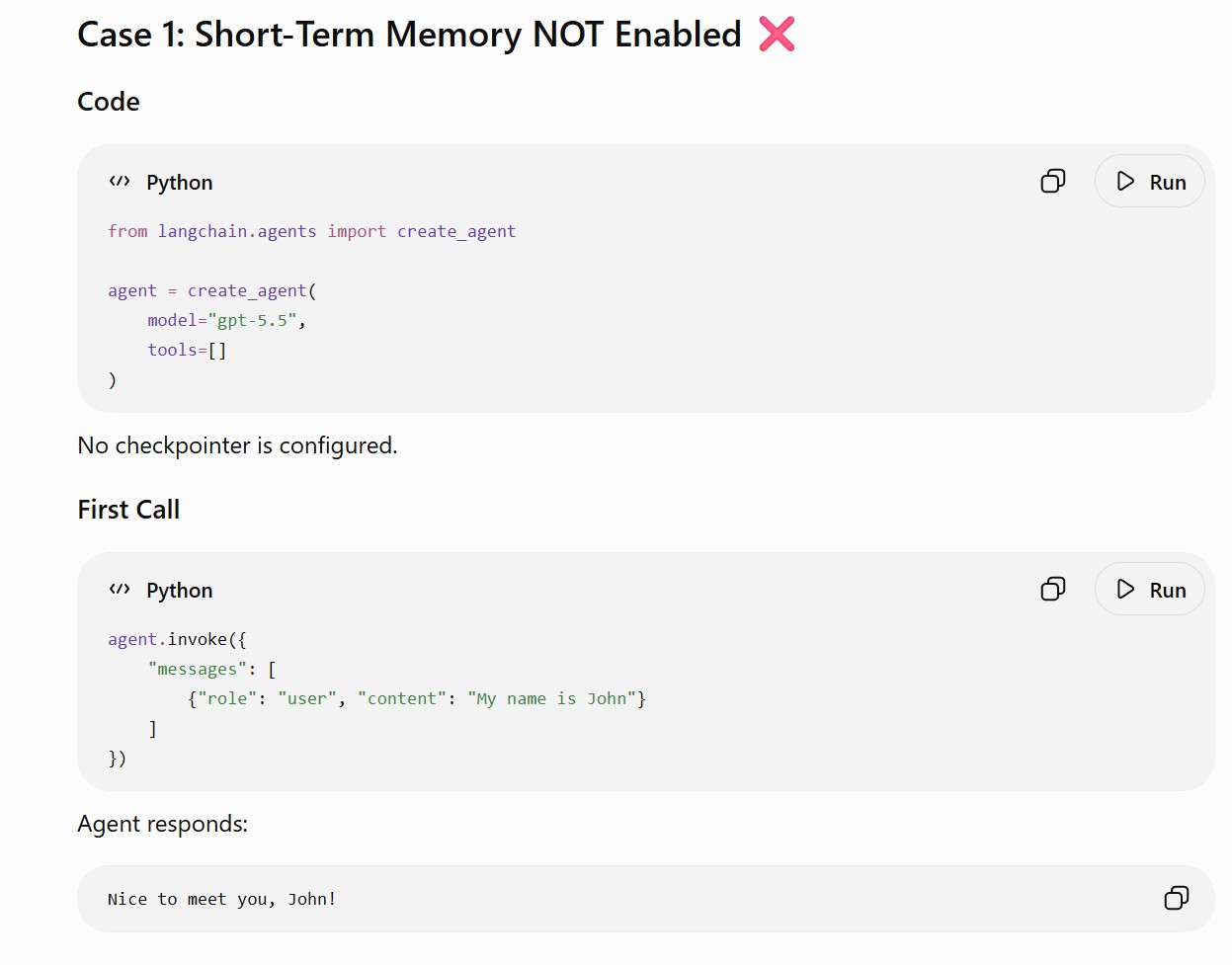

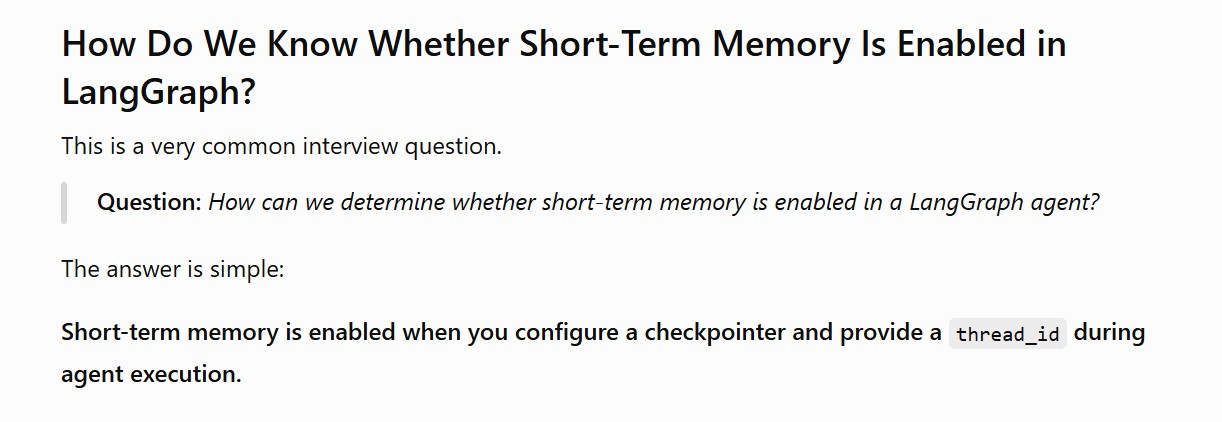

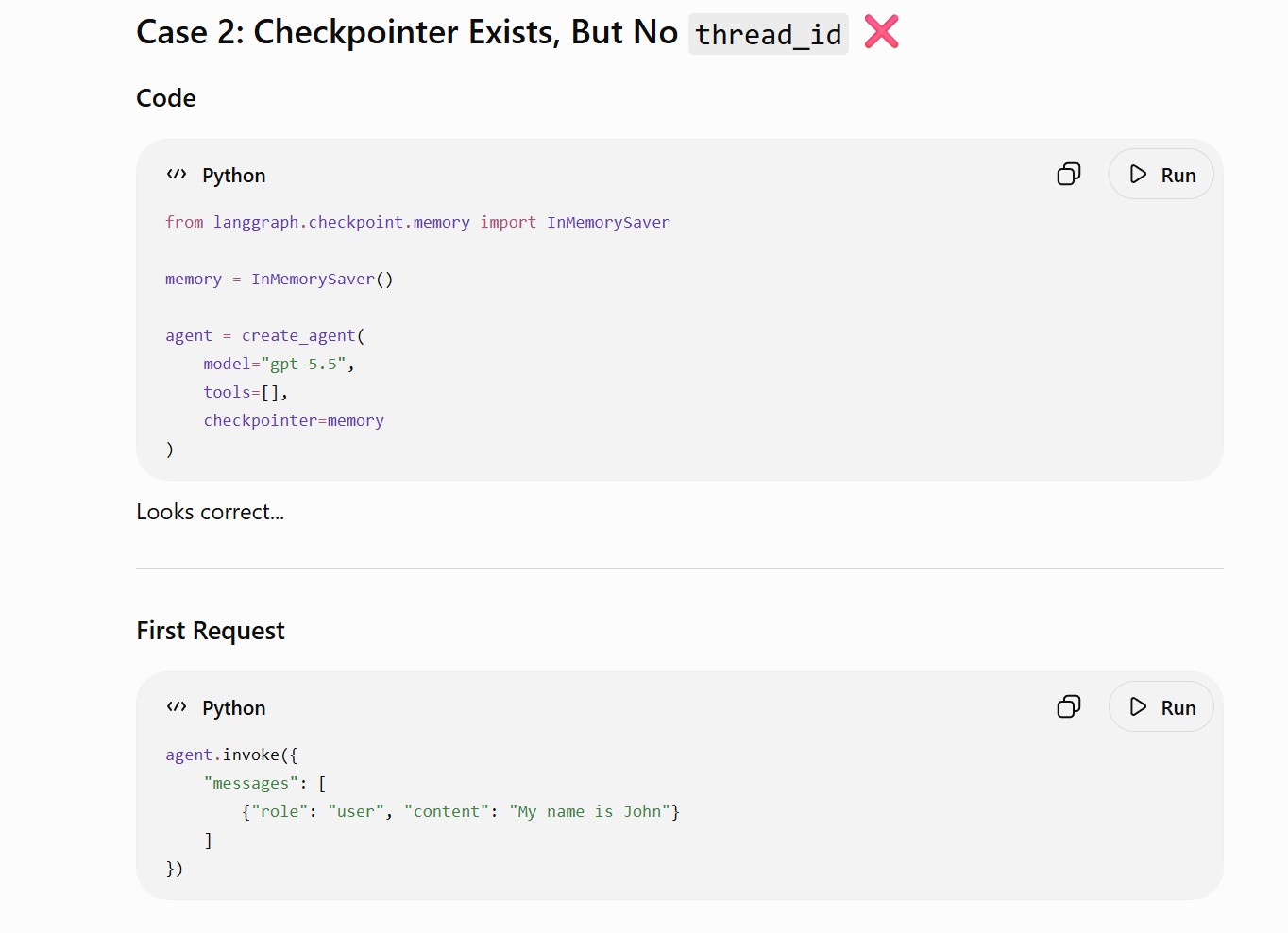

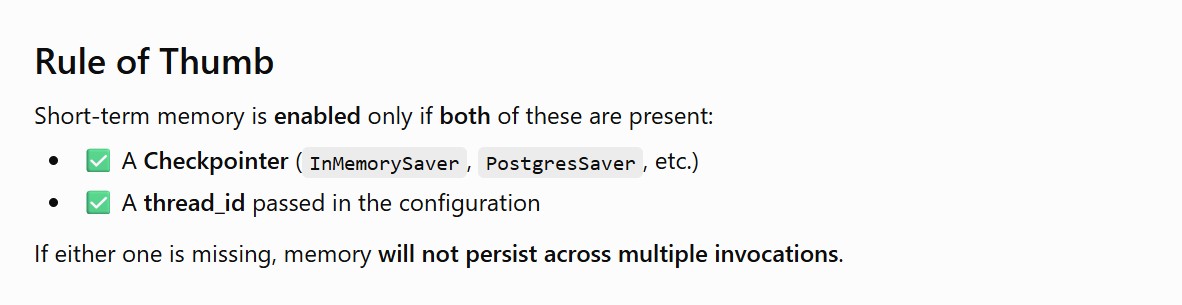

(5) How Do We Know Whether Short-Term Memory Is Enabled in LangGraph?

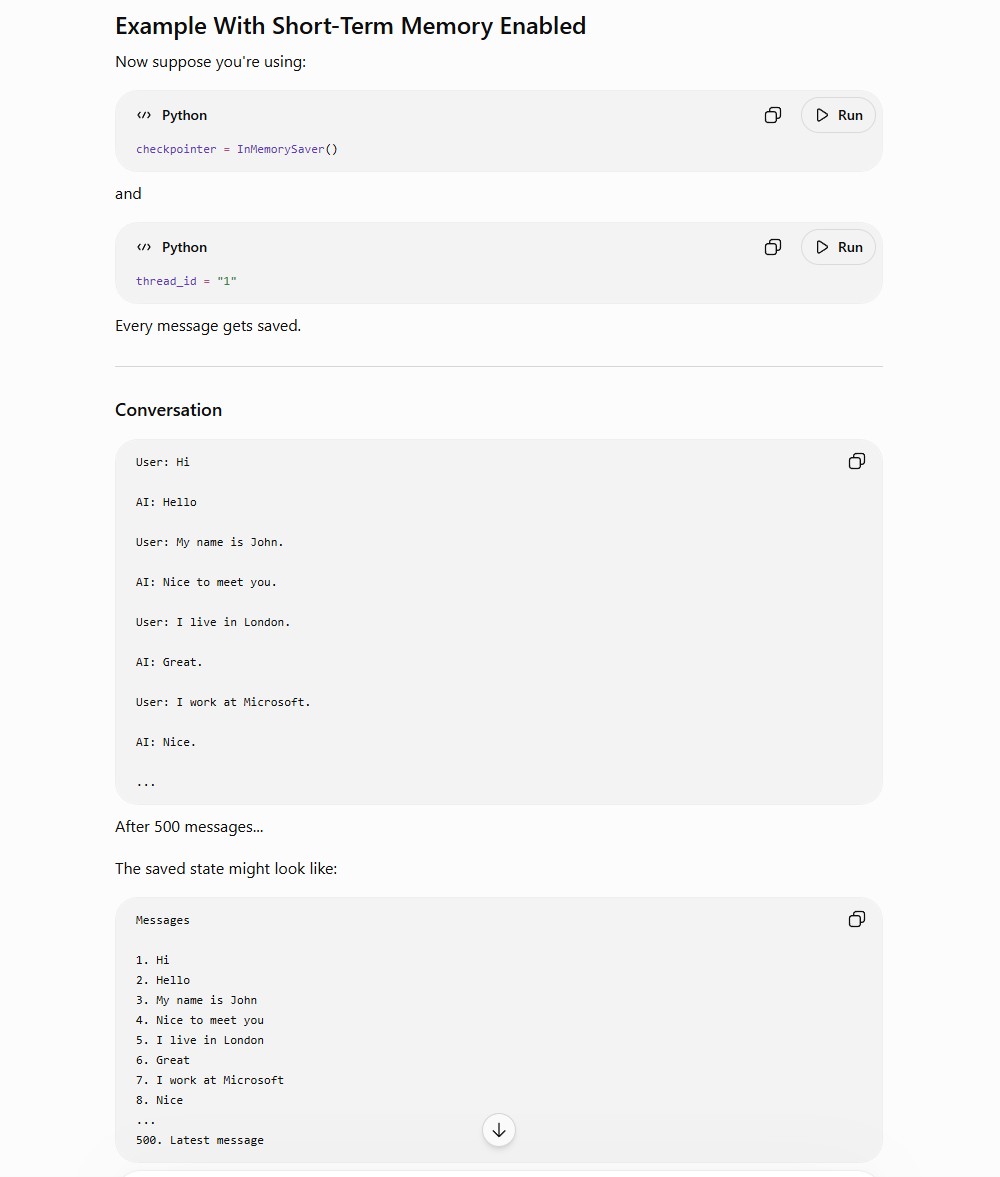

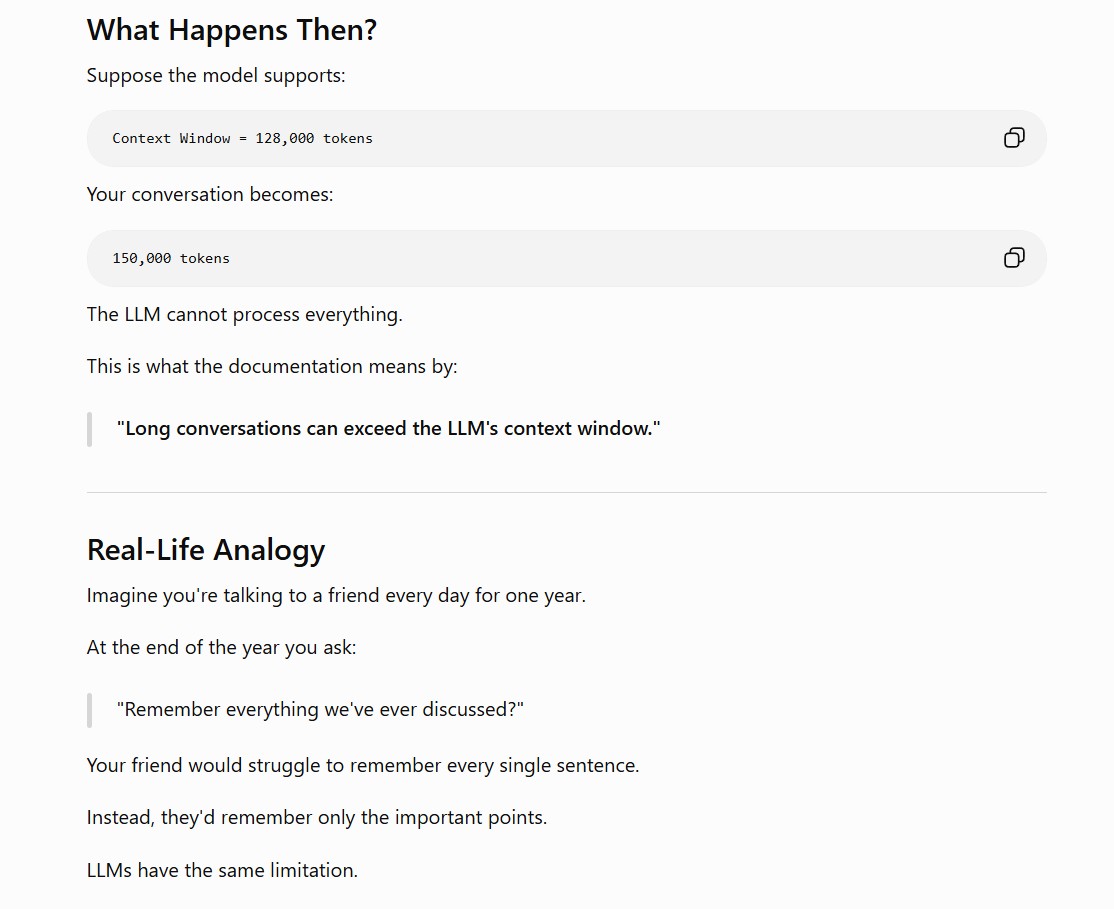

(6) Problem With Short Term Memory Enabled.

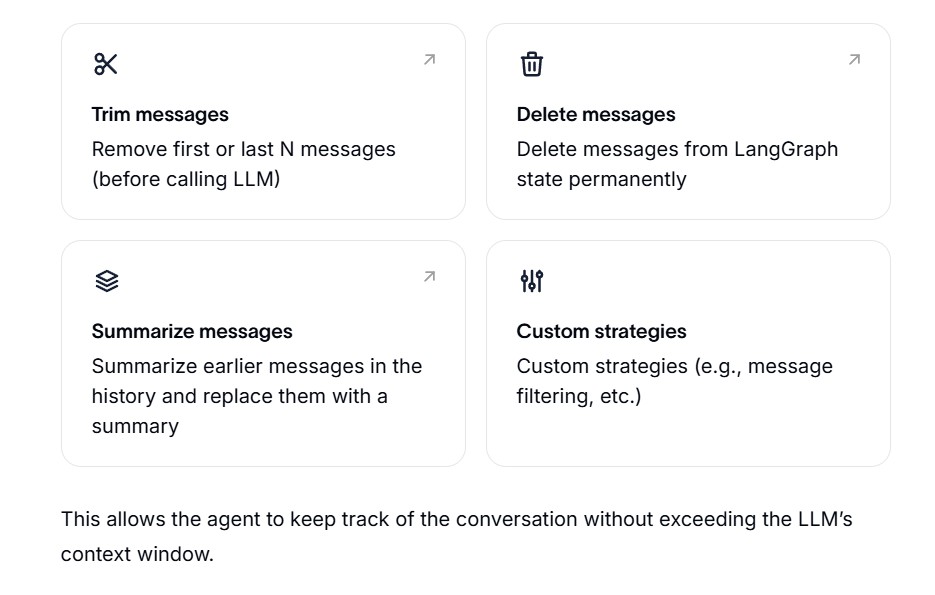

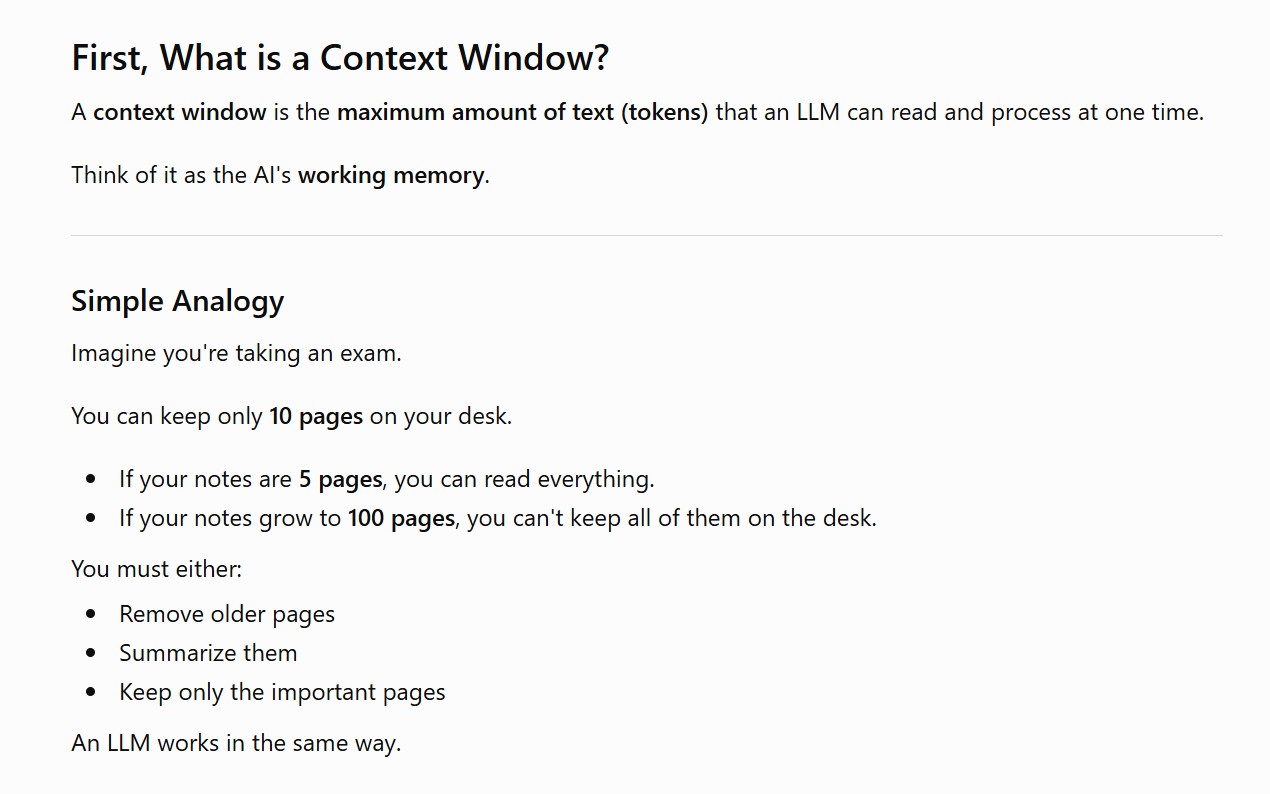

(7) How LangChain Solves The Context Window Exceeds Issue?

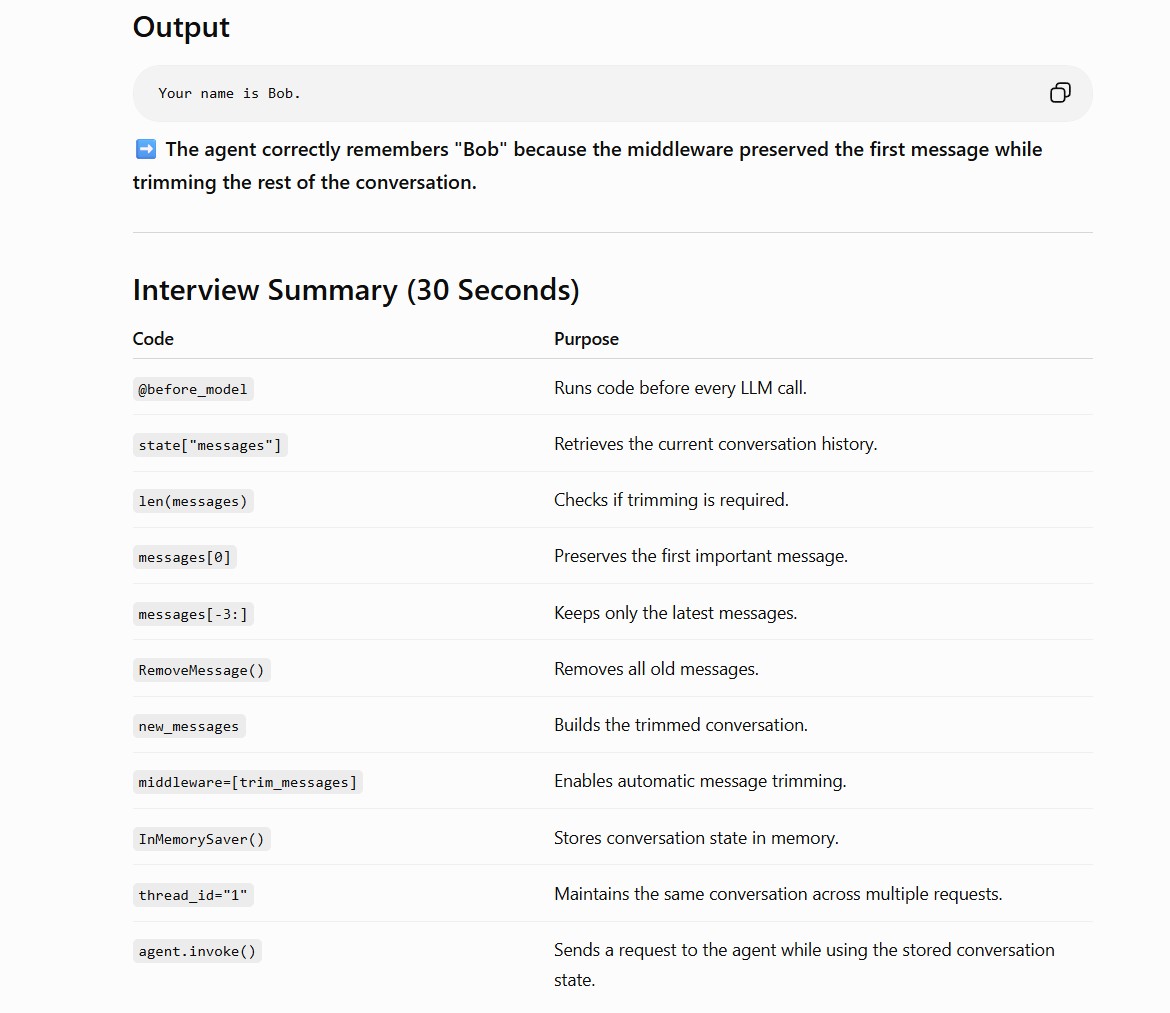

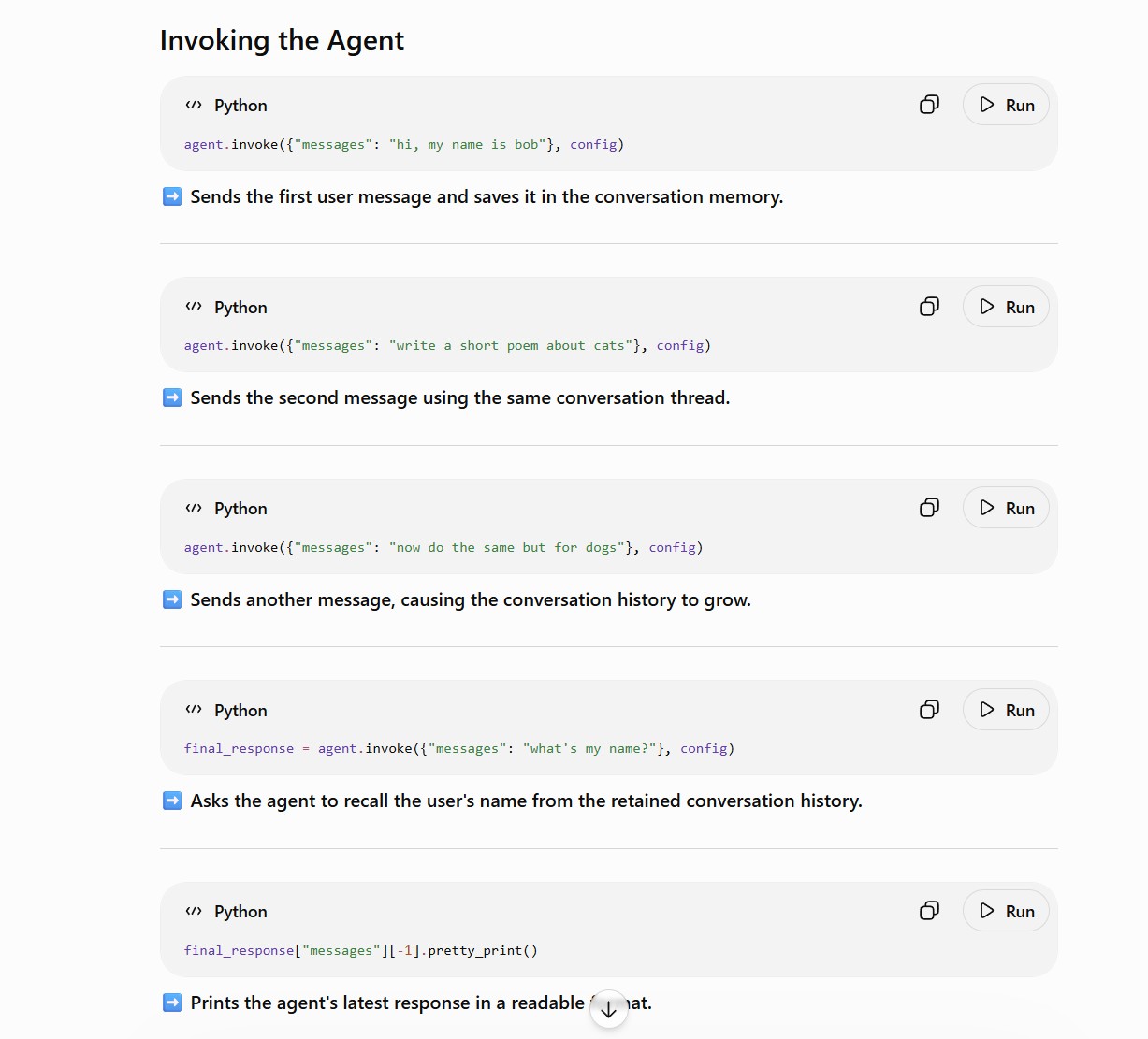

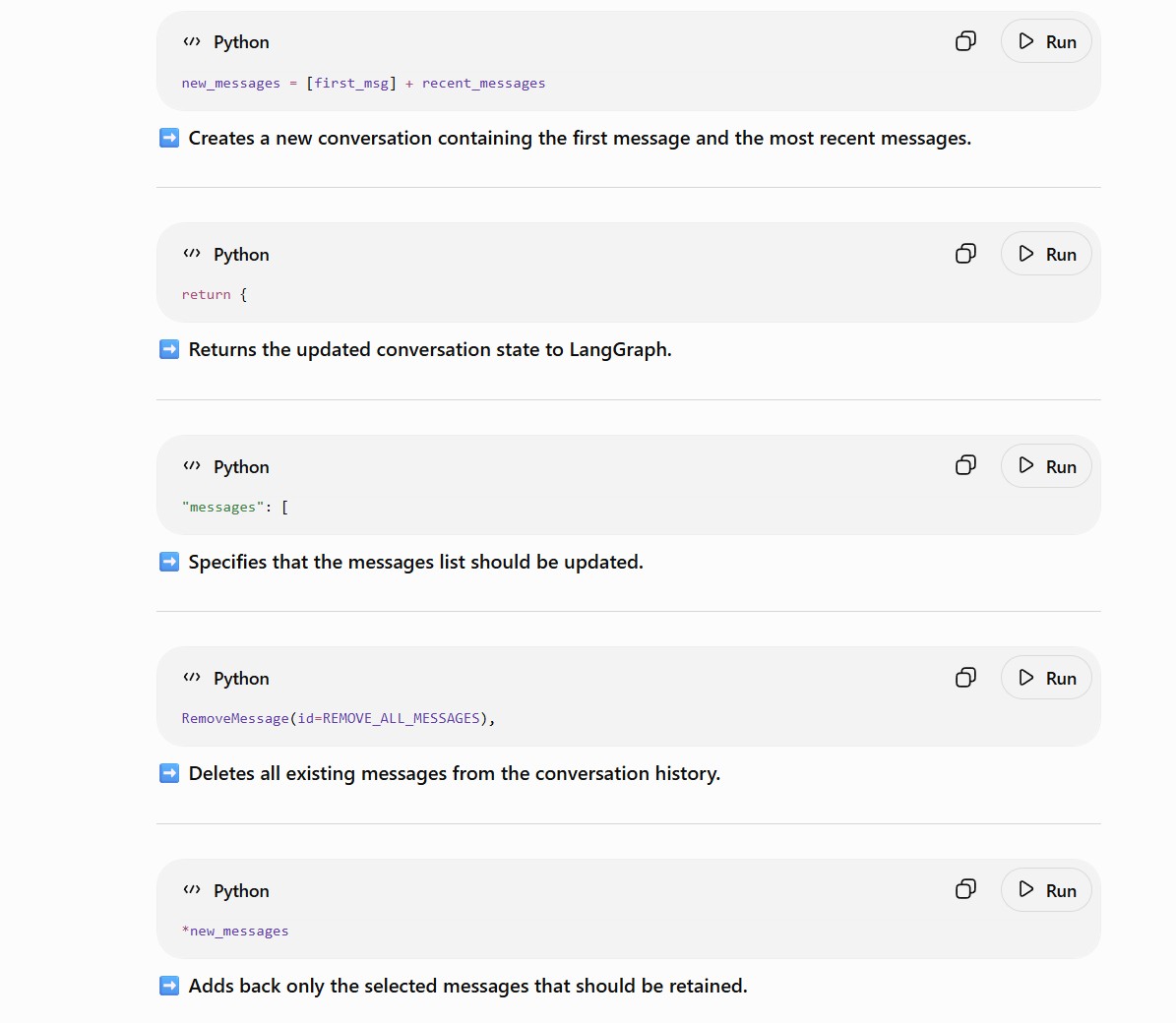

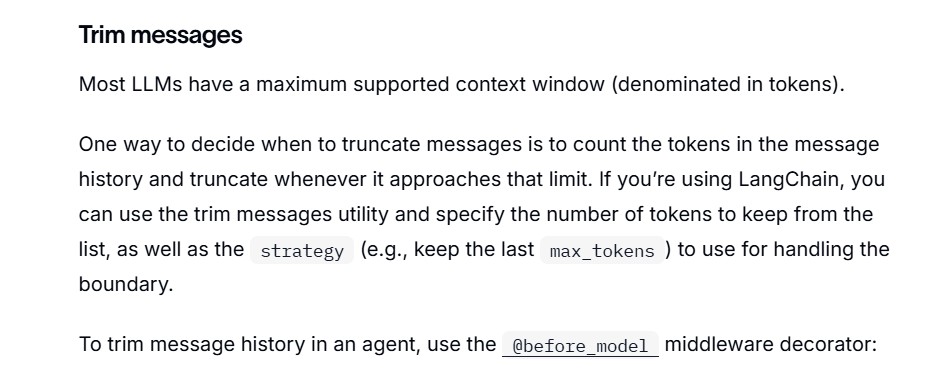

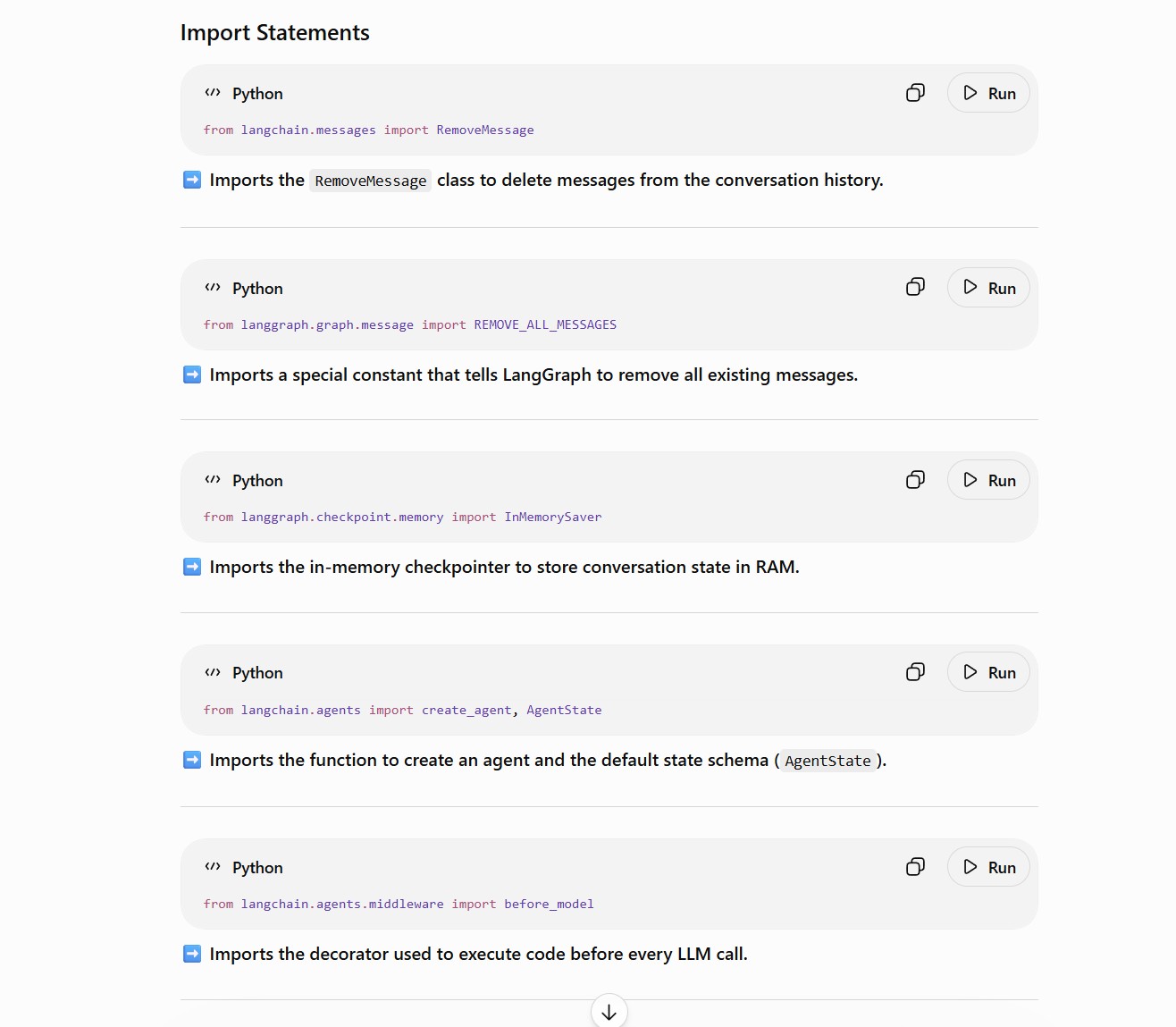

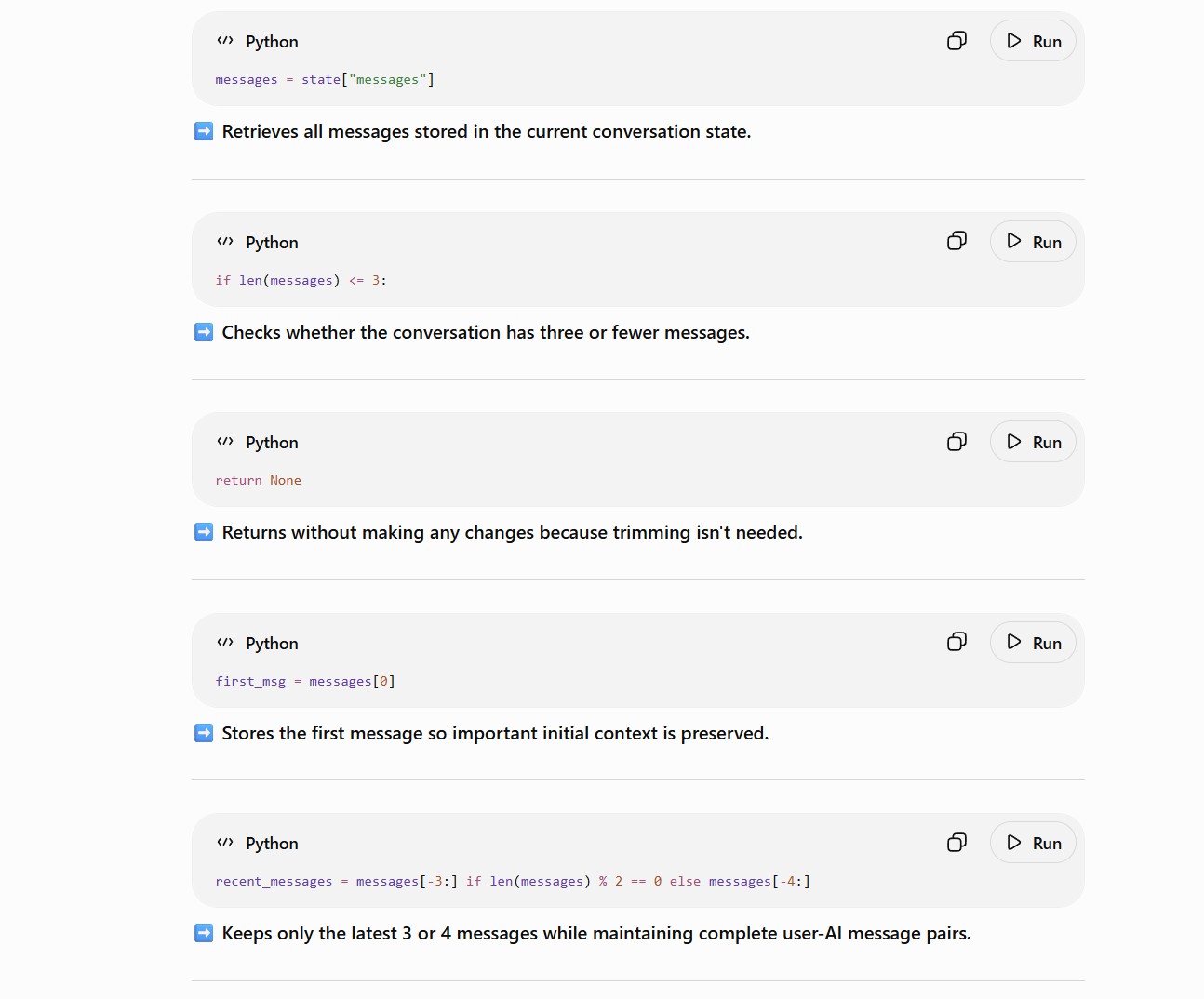

(8) Message Trimming From Memory.

from langchain.messages import RemoveMessage
from langgraph.graph.message import REMOVE_ALL_MESSAGES
from langgraph.checkpoint.memory import InMemorySaver
from langchain.agents import create_agent, AgentState
from langchain.agents.middleware import before_model
from langgraph.runtime import Runtime
from langchain_core.runnables import RunnableConfig
from typing import Any


@before_model
def trim_messages(state: AgentState, runtime: Runtime) -> dict[str, Any] | None:
    """Keep only the last few messages to fit context window."""
    messages = state["messages"]

    if len(messages) <= 3:
        return None  # No changes needed

    first_msg = messages[0]
    recent_messages = messages[-3:] if len(messages) % 2 == 0 else messages[-4:]
    new_messages = [first_msg] + recent_messages

    return {
        "messages": [
            RemoveMessage(id=REMOVE_ALL_MESSAGES),
            *new_messages
        ]
    }

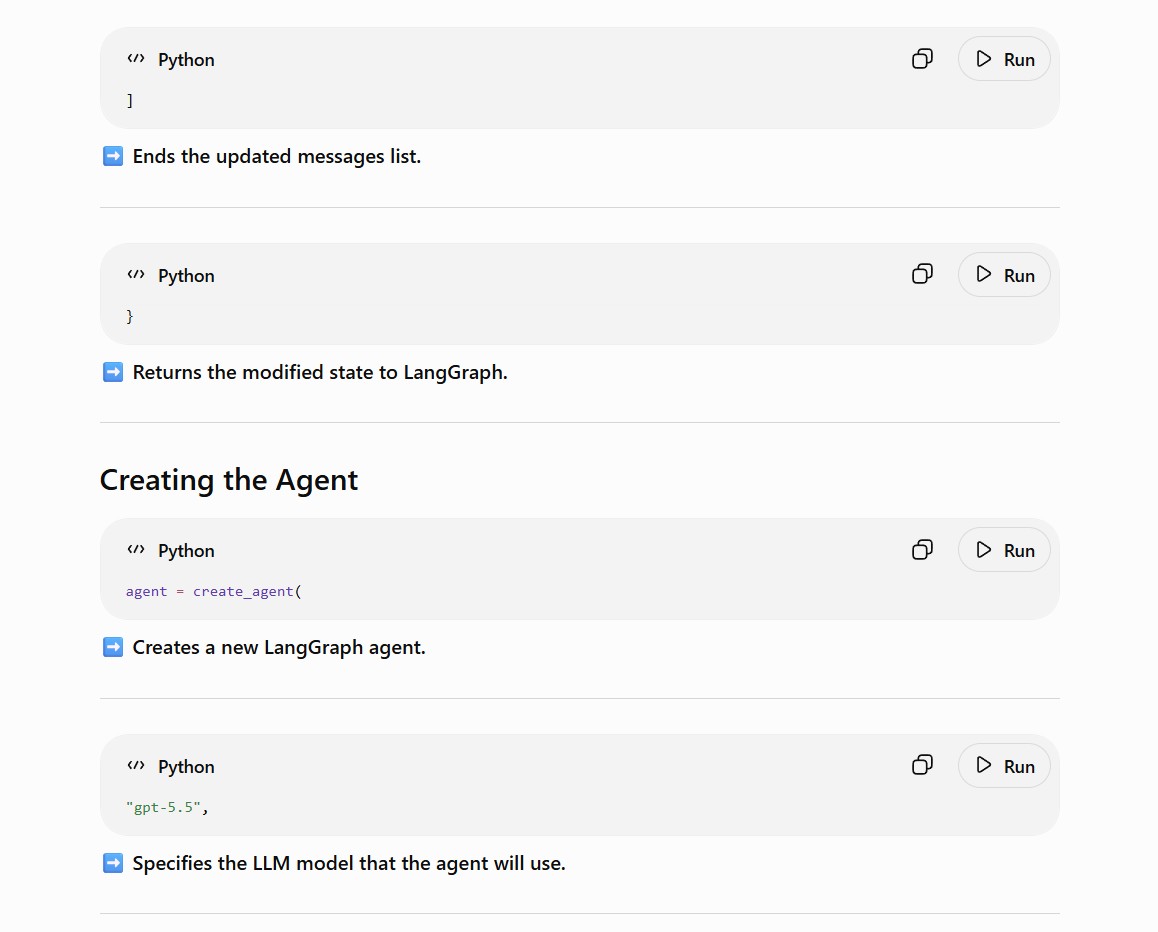

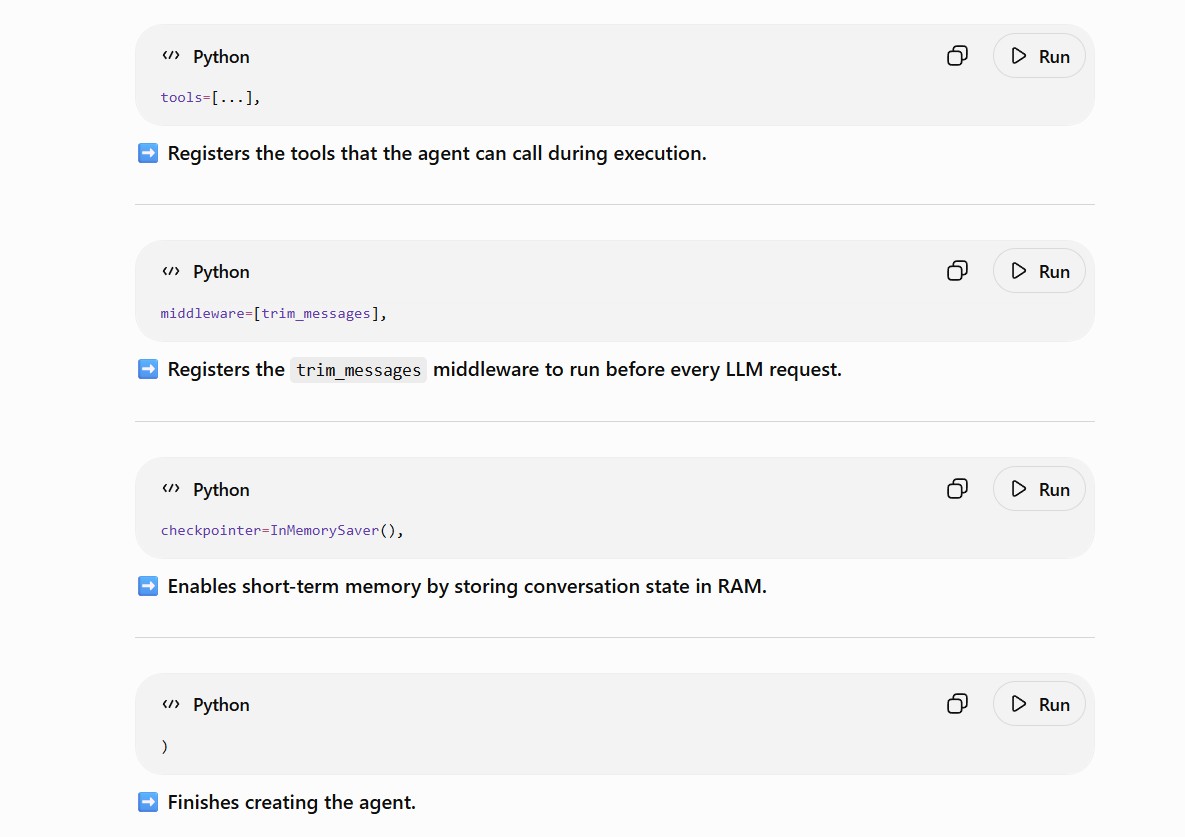

agent = create_agent(
    "gpt-5.5",
    tools=[...],
    middleware=[trim_messages],
    checkpointer=InMemorySaver(),
)

config: RunnableConfig = {"configurable": {"thread_id": "1"}}

agent.invoke({"messages": "hi, my name is bob"}, config)
agent.invoke({"messages": "write a short poem about cats"}, config)
agent.invoke({"messages": "now do the same but for dogs"}, config)
final_response = agent.invoke({"messages": "what's my name?"}, config)

final_response["messages"][-1].pretty_print()
"""
================================== Ai Message ==================================

Your name is Bob. You told me that earlier.
If you'd like me to call you a nickname or use a different name, just say the word.
"""

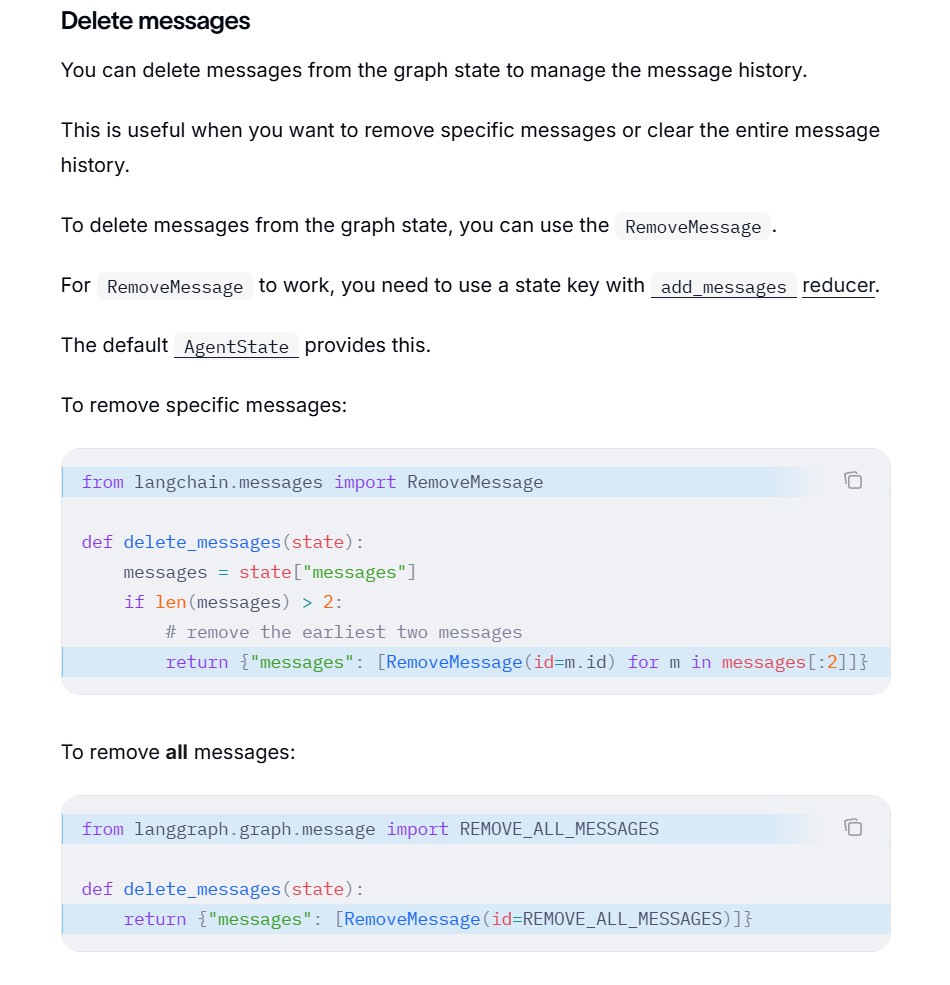

(9) Message Deletion From Memory.

from langchain.messages import RemoveMessage
from langchain.agents import create_agent, AgentState
from langchain.agents.middleware import after_model
from langgraph.checkpoint.memory import InMemorySaver
from langgraph.runtime import Runtime
from langchain_core.runnables import RunnableConfig


@after_model
def delete_old_messages(state: AgentState, runtime: Runtime) -> dict | None:
    """Remove old messages to keep conversation manageable."""
    messages = state["messages"]
    if len(messages) > 2:
        # remove the earliest two messages
        return {"messages": [RemoveMessage(id=m.id) for m in messages[:2]]}
    return None


agent = create_agent(
    "gpt-5-nano",
    tools=[...],
    system_prompt="Please be concise and to the point.",
    middleware=[delete_old_messages],
    checkpointer=InMemorySaver(),
)

config: RunnableConfig = {"configurable": {"thread_id": "1"}}

stream = agent.stream_events(
    {"messages": [{"role": "user", "content": "hi! I'm bob"}]},
    config,
    version="v3",
)
for snapshot in stream.values:
    print([(message.type, message.content) for message in snapshot["messages"]])

stream = agent.stream_events(
    {"messages": [{"role": "user", "content": "write a short poem about cats"}]},
    config,
    version="v3",
)
for snapshot in stream.values:
    print([(message.type, message.content) for message in snapshot["messages"]])

stream = agent.stream_events(
    {"messages": [{"role": "user", "content": "what's my name?"}]},
    config,
    version="v3",
)
for snapshot in stream.values:
    print([(message.type, message.content) for message in snapshot["messages"]])
[('human', "hi! I'm bob")]
[('human', "hi! I'm bob"), ('ai', 'Hi Bob! Nice to meet you. How can I help you today? I can answer questions, brainstorm ideas, draft text, explain things, or help with code.')]
[('human', "hi! I'm bob"), ('ai', 'Hi Bob! Nice to meet you. How can I help you today? I can answer questions, brainstorm ideas, draft text, explain things, or help with code.'), ('human', "write a short poem about cats")]
[('human', "hi! I'm bob"), ('ai', 'Hi Bob! Nice to meet you. How can I help you today? I can answer questions, brainstorm ideas, draft text, explain things, or help with code.'), ('human', "write a short poem about cats"), ('ai', 'There once was a cat on a wall, Who barely moved at all...')]
[('human', 'write a short poem about cats'), ('ai', 'There once was a cat on a wall, Who barely moved at all...')]
[('human', 'write a short poem about cats'), ('ai', 'There once was a cat on a wall, Who barely moved at all...'), ('human', "what's my name?")]
[('human', 'write a short poem about cats'), ('ai', 'There once was a cat on a wall, Who barely moved at all...'), ('human', "what's my name?"), ('ai', "I don't know your name - you haven't told me!")]
[('human', "what's my name?"), ('ai', "I don't know your name - you haven't told me!")]

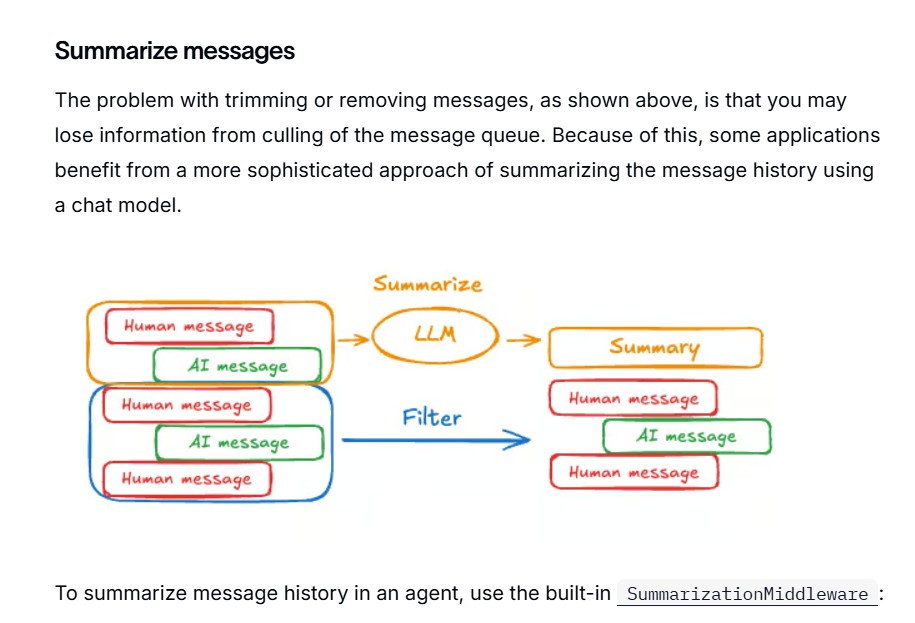

(10) Summarize The Old Messages

from langchain.agents import create_agent
from langchain.agents.middleware import SummarizationMiddleware
from langgraph.checkpoint.memory import InMemorySaver
from langchain_core.runnables import RunnableConfig


checkpointer = InMemorySaver()

agent = create_agent(
    model="gpt-5.5",
    tools=[...],
    middleware=[
        SummarizationMiddleware(
            model="gpt-5.4-mini",
            trigger=("tokens", 4000),
            keep=("messages", 20)
        )
    ],
    checkpointer=checkpointer,
)

config: RunnableConfig = {"configurable": {"thread_id": "1"}}
agent.invoke({"messages": "hi, my name is bob"}, config)
agent.invoke({"messages": "write a short poem about cats"}, config)
agent.invoke({"messages": "now do the same but for dogs"}, config)
final_response = agent.invoke({"messages": "what's my name?"}, config)

final_response["messages"][-1].pretty_print()
"""
================================== Ai Message ==================================

Your name is Bob!
"""

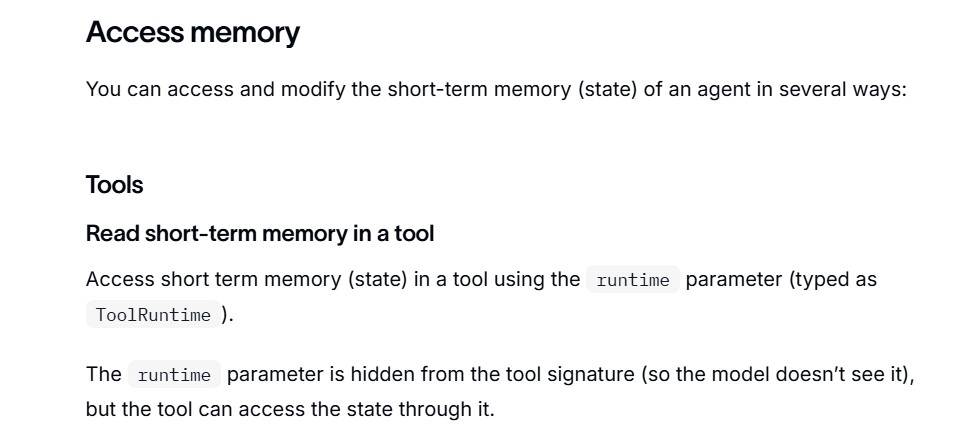

(11) Accessing Short Term Memory

from langchain.agents import create_agent, AgentState
from langchain.tools import tool, ToolRuntime


class CustomState(AgentState):
    user_id: str

@tool
def get_user_info(
    runtime: ToolRuntime
) -> str:
    """Look up user info."""
    user_id = runtime.state["user_id"]
    return "User is John Smith" if user_id == "user_123" else "Unknown user"

agent = create_agent(
    model="gpt-5-nano",
    tools=[get_user_info],
    state_schema=CustomState,
)

result = agent.invoke({
    "messages": "look up user information",
    "user_id": "user_123"
})
print(result["messages"][-1].content)
# > User is John Smith.

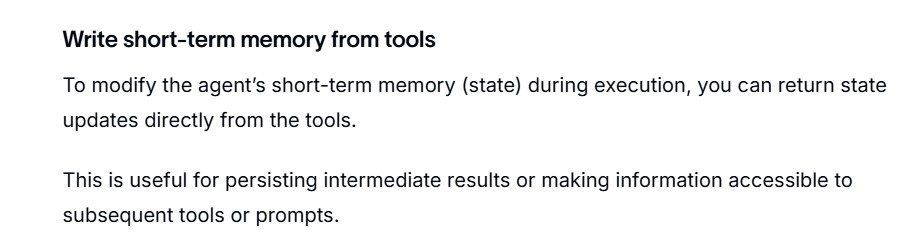

from langchain.tools import tool, ToolRuntime
from langchain_core.runnables import RunnableConfig
from langchain.messages import ToolMessage
from langchain.agents import create_agent, AgentState
from langgraph.types import Command
from pydantic import BaseModel


class CustomState(AgentState):
    user_name: str

class CustomContext(BaseModel):
    user_id: str

@tool
def update_user_info(
    runtime: ToolRuntime[CustomContext, CustomState],
) -> Command:
    """Look up and update user info."""
    user_id = runtime.context.user_id
    name = "John Smith" if user_id == "user_123" else "Unknown user"
    return Command(update={
        "user_name": name,
        # update the message history
        "messages": [
            ToolMessage(
                "Successfully looked up user information",
                tool_call_id=runtime.tool_call_id
            )
        ]
    })

@tool
def greet(
    runtime: ToolRuntime[CustomContext, CustomState]
) -> str | Command:
    """Use this to greet the user once you found their info."""
    user_name = runtime.state.get("user_name", None)
    if user_name is None:
       return Command(update={
            "messages": [
                ToolMessage(
                    "Please call the 'update_user_info' tool it will get and update the user's name.",
                    tool_call_id=runtime.tool_call_id
                )
            ]
        })
    return f"Hello {user_name}!"

agent = create_agent(
    model="gpt-5-nano",
    tools=[update_user_info, greet],
    state_schema=CustomState,
    context_schema=CustomContext,
)

agent.invoke(
    {"messages": [{"role": "user", "content": "greet the user"}]},
    context=CustomContext(user_id="user_123"),
)

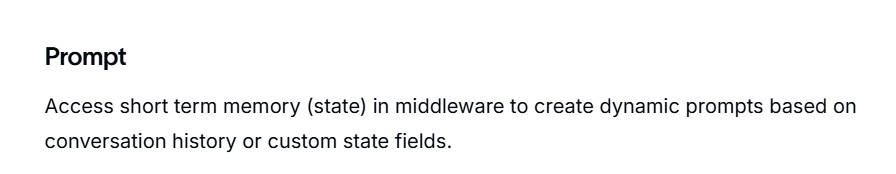

from langchain.agents import create_agent
from typing import TypedDict
from langchain.agents.middleware import dynamic_prompt, ModelRequest


class CustomContext(TypedDict):
    user_name: str


def get_weather(city: str) -> str:
    """Get the weather in a city."""
    return f"The weather in {city} is always sunny!"


@dynamic_prompt
def dynamic_system_prompt(request: ModelRequest) -> str:
    user_name = request.runtime.context["user_name"]
    system_prompt = f"You are a helpful assistant. Address the user as {user_name}."
    return system_prompt


agent = create_agent(
    model="gpt-5-nano",
    tools=[get_weather],
    middleware=[dynamic_system_prompt],
    context_schema=CustomContext,
)

result = agent.invoke(
    {"messages": [{"role": "user", "content": "What is the weather in SF?"}]},
    context=CustomContext(user_name="John Smith"),
)
for msg in result["messages"]:
    msg.pretty_print()
================================ Human Message =================================

What is the weather in SF?
================================== Ai Message ==================================
Tool Calls:
  get_weather (call_WFQlOGn4b2yoJrv7cih342FG)
 Call ID: call_WFQlOGn4b2yoJrv7cih342FG
  Args:
    city: San Francisco
================================= Tool Message =================================
Name: get_weather

The weather in San Francisco is always sunny!
================================== Ai Message ==================================

Hi John Smith, the weather in San Francisco is always sunny!
from langchain.messages import RemoveMessage
from langgraph.graph.message import REMOVE_ALL_MESSAGES
from langgraph.checkpoint.memory import InMemorySaver
from langchain.agents import create_agent, AgentState
from langchain.agents.middleware import before_model
from langchain_core.runnables import RunnableConfig
from langgraph.runtime import Runtime
from typing import Any

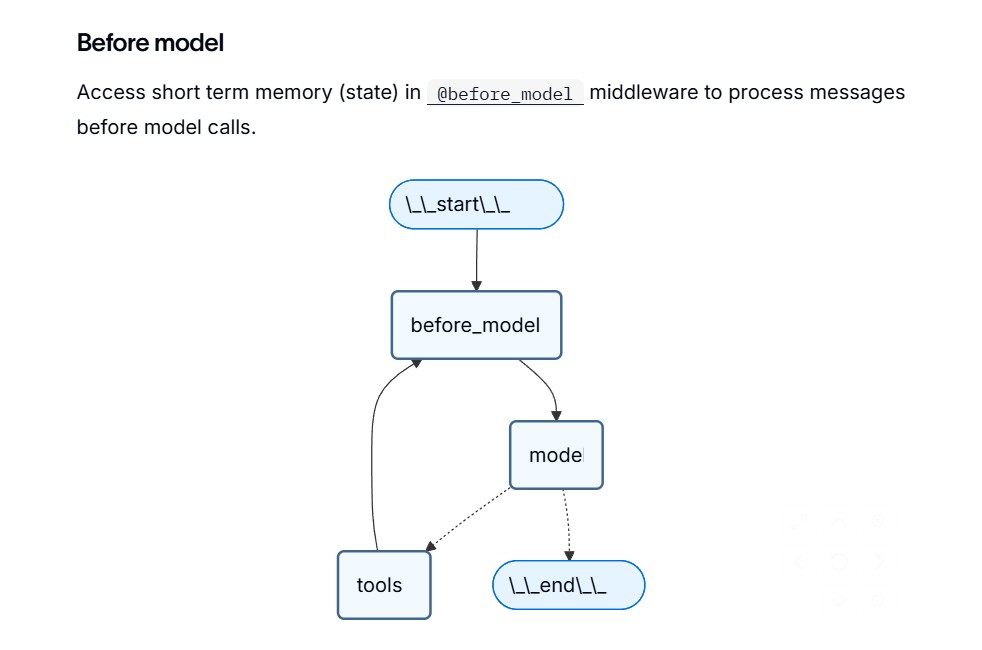

@before_model
def trim_messages(state: AgentState, runtime: Runtime) -> dict[str, Any] | None:
    """Keep only the last few messages to fit context window."""
    messages = state["messages"]

    if len(messages) <= 3:
        return None  # No changes needed

    first_msg = messages[0]
    recent_messages = messages[-3:] if len(messages) % 2 == 0 else messages[-4:]
    new_messages = [first_msg] + recent_messages

    return {
        "messages": [
            RemoveMessage(id=REMOVE_ALL_MESSAGES),
            *new_messages
        ]
    }


agent = create_agent(
    "gpt-5-nano",
    tools=[],
    middleware=[trim_messages],
    checkpointer=InMemorySaver()
)

config: RunnableConfig = {"configurable": {"thread_id": "1"}}

agent.invoke({"messages": "hi, my name is bob"}, config)
agent.invoke({"messages": "write a short poem about cats"}, config)
agent.invoke({"messages": "now do the same but for dogs"}, config)
final_response = agent.invoke({"messages": "what's my name?"}, config)

final_response["messages"][-1].pretty_print()
"""
================================== Ai Message ==================================

Your name is Bob. You told me that earlier.
If you'd like me to call you a nickname or use a different name, just say the word.
"""

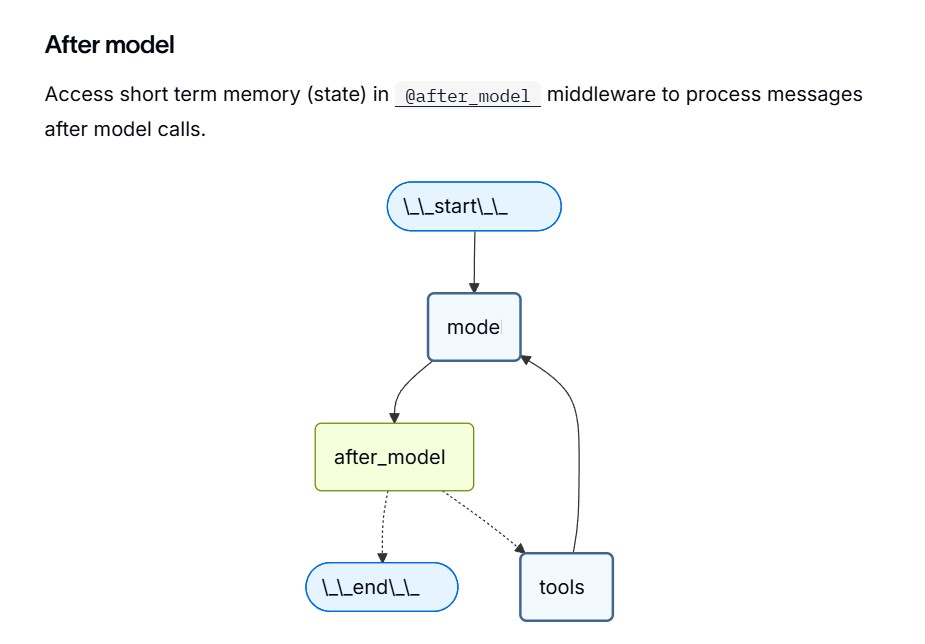

from langchain.messages import RemoveMessage
from langgraph.checkpoint.memory import InMemorySaver
from langchain.agents import create_agent, AgentState
from langchain.agents.middleware import after_model
from langgraph.runtime import Runtime


@after_model
def validate_response(state: AgentState, runtime: Runtime) -> dict | None:
    """Remove messages containing sensitive words."""
    STOP_WORDS = ["password", "secret"]
    last_message = state["messages"][-1]
    if any(word in last_message.content for word in STOP_WORDS):
        return {"messages": [RemoveMessage(id=last_message.id)]}
    return None

agent = create_agent(
    model="gpt-5-nano",
    tools=[],
    middleware=[validate_response],
    checkpointer=InMemorySaver(),
)
