Ally AI – Full Architecture Diagram
Full Architecture:

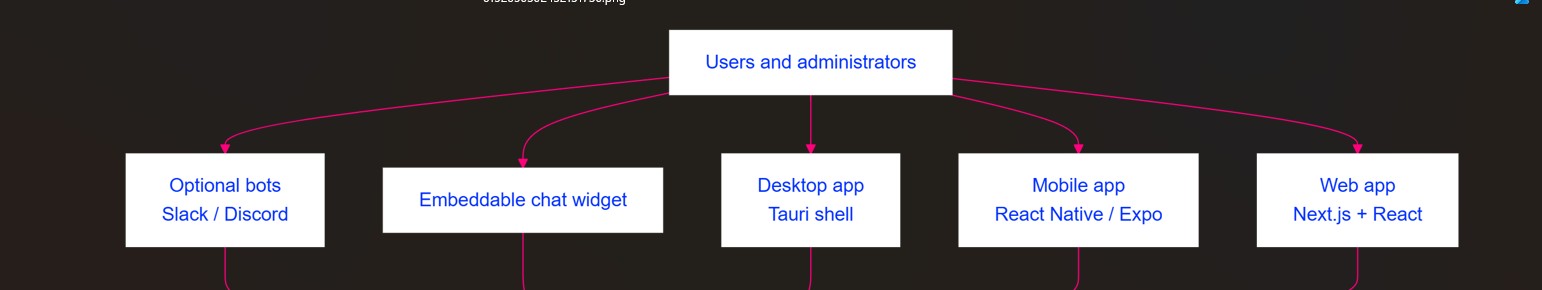

Users & Administrators:
Edge and Access Layer:
Application Layer:

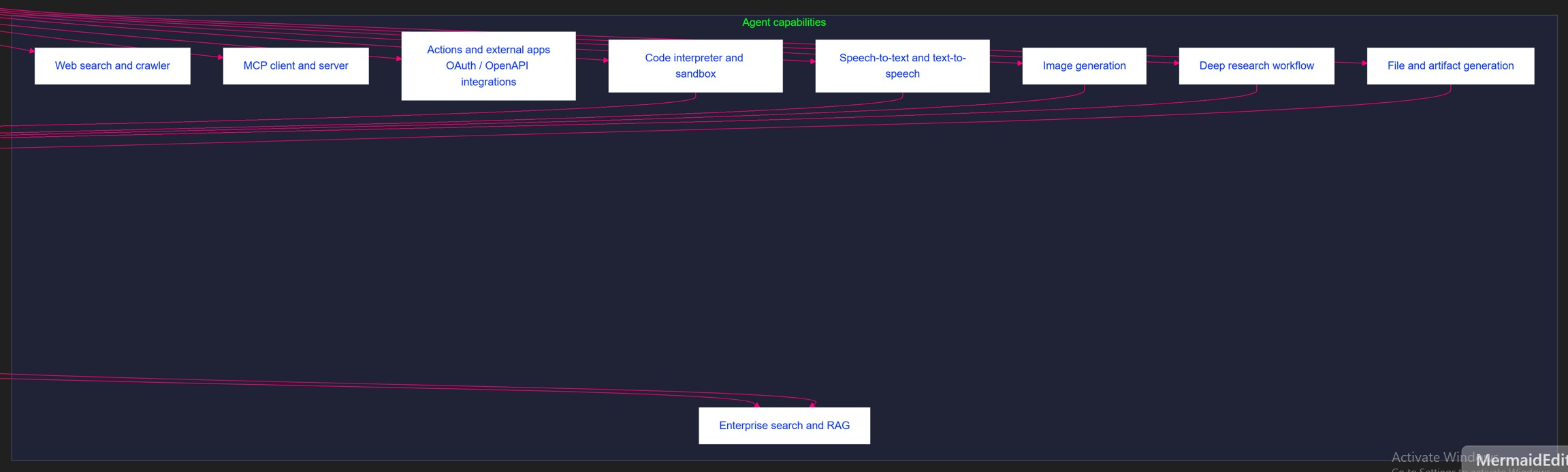

Agent Capability:

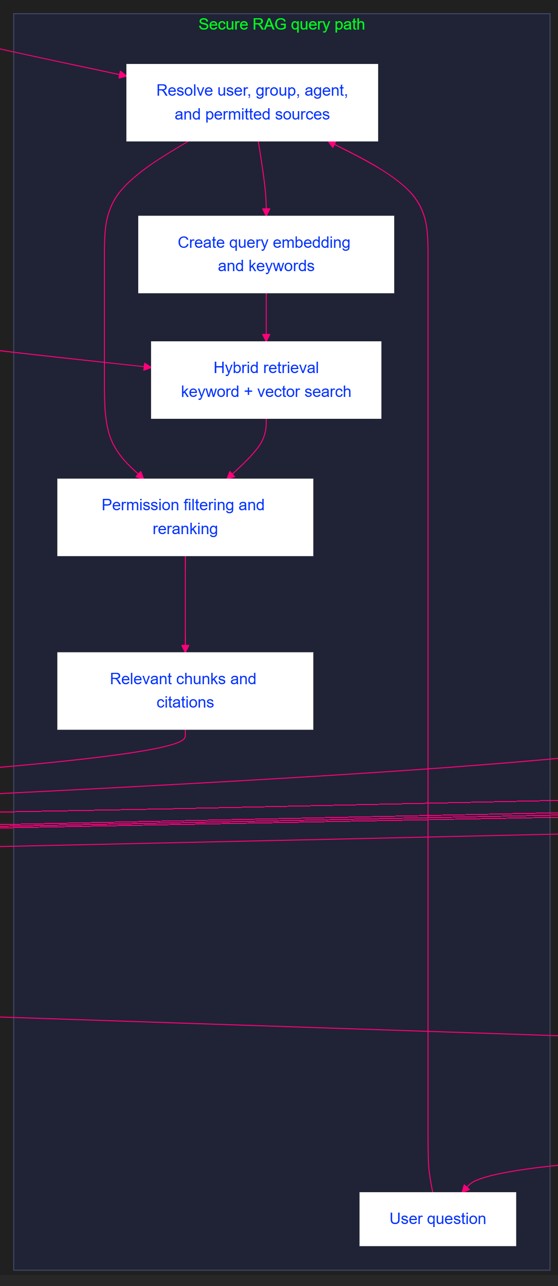

Secure RAG Query Path:

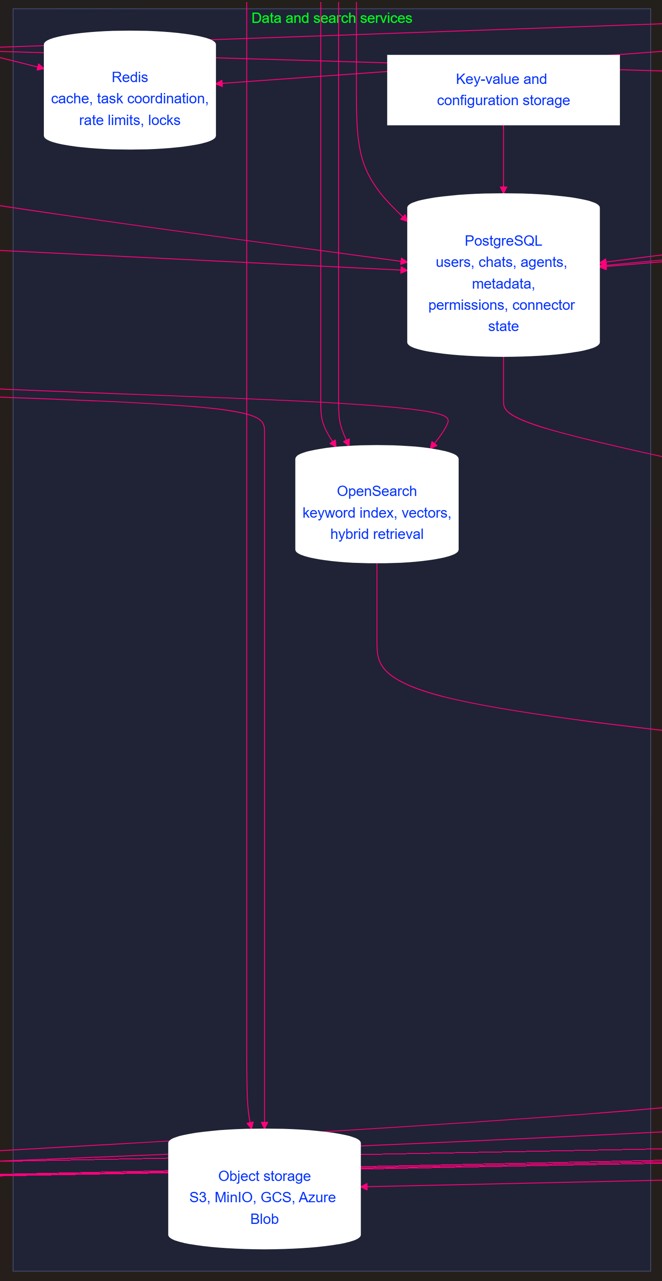

Data And Search Services:

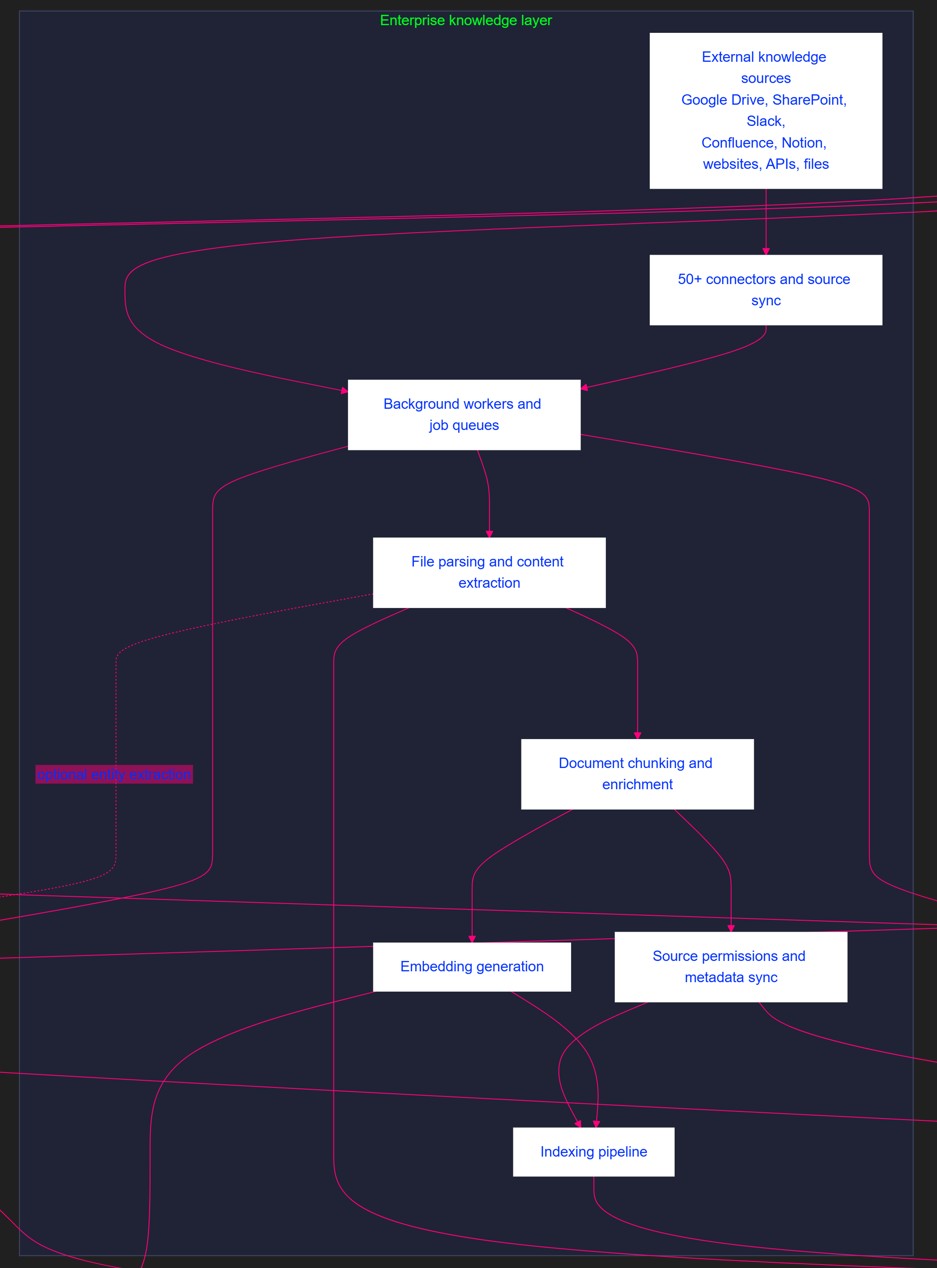

Enterprise Knowledge Layer:

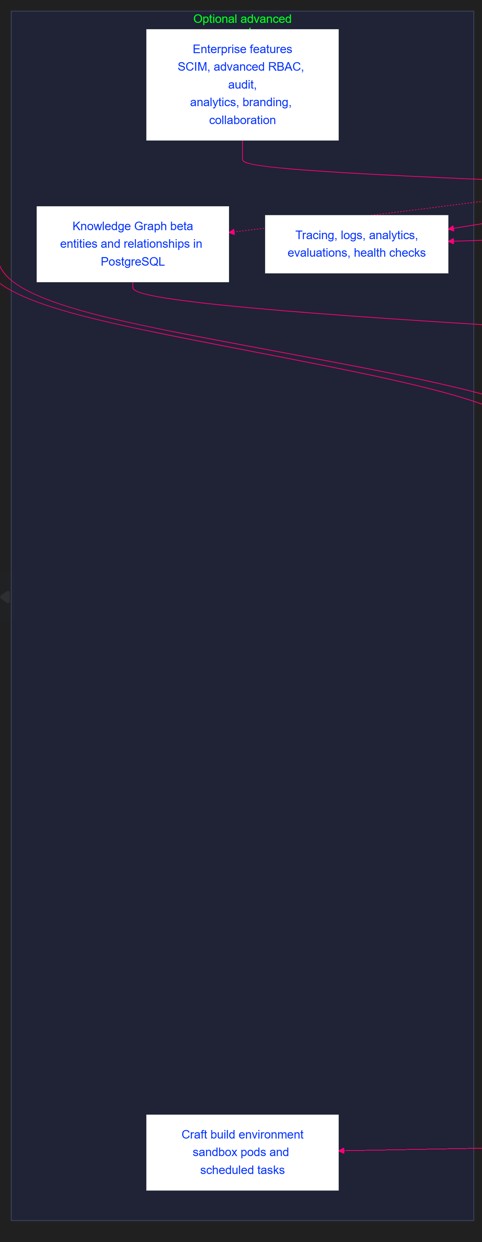

Optional Advanced:

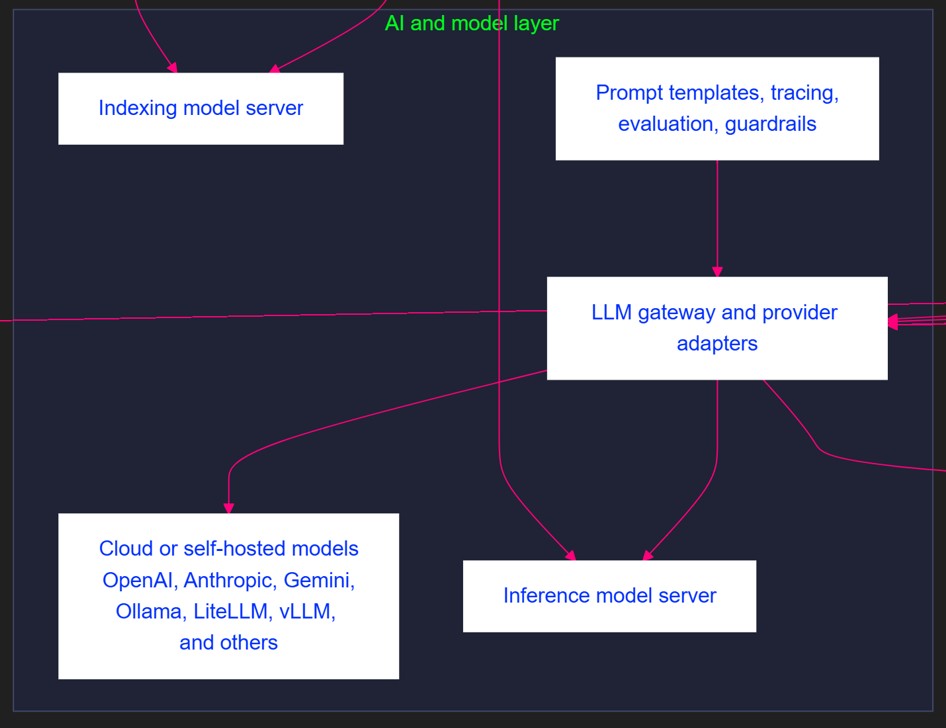

AI and Model Layer:
Typical Deployment Layer:
